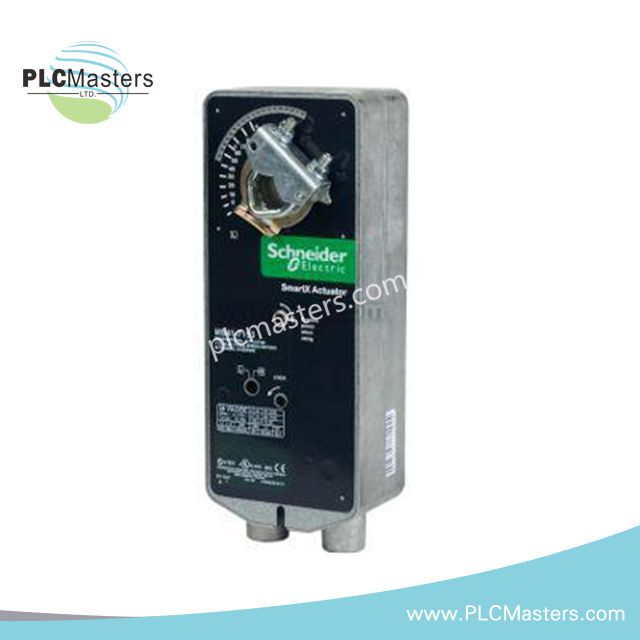

Schneider MA41-7153-502 Spring Return DuraDrive Actuator
    Schneider MA41-7153-502 Spring Return DuraDrive Actuator

    Schneider MA41-7153-502 Spring Return DuraDrive Actuator

    • 1000 In stock

    • Manufacturer: Schneider

    • Product No.: MA41-7153-502

    • Condition： In stock

    • Product Type: Spring Return DuraDrive Actuator

    • Product Origin: France

    • Payment:T/T, Western Union

    • Weight: 100g

    • Shipping port: Xiamen

    • Warranty: 12 months

    {"id":41879914512474,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"MA41-7153-502","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Schneider MA41-7153-502 Spring Return DuraDrive Actuator","public_title":null,"options":["Default Title"],"price":18500,"weight":100,"compare_at_price":49800,"inventory_management":"shopify","barcode":"France","requires_selling_plan":false,"selling_plan_allocations":[]}

    Description

    Overview

    The Schneider MA41-7153-502 is a spring return actuator, designed for two-position control of dampers and valves in HVAC systems. It offers reliable performance for demanding industrial applications.

    Technical Specifications

    • Model Number: MA41-7153-502

    • Type: Spring Return Actuator

    • Manufacturer: Schneider Electric

    Performance

    • Torque Output: 133 lb-in (15 N-m)

    • Power Supply: 24 VAC ±20% or 22-30 VDC

    • Power Consumption: 9.8 VA

    • Control Signal: Two-position control

    • Rotation: 95° ±5°

    • Manual Override: Crank for manual operation

    • Noise Level: <60 dB at 1 meter

    Environmental Conditions

    • Operating Temperature: -30°C to +60°C

    • Humidity Range: 15% to 95% RH, non-condensing

    Additional Features

    • Life Expectancy: 60,000 cycles

    • Resolution: 100 steps

    • Enclosure Rating:

      • NEMA 2 (IP54) for 35, 60, 133 in-lb models

      • NEMA 4 (IP56) for 150 in-lb models

    • Wiring: 3-foot cable, 18 AWG

    • Conduit Connection: 1/2" FNPT

    Features

    We welcome bulk orders and have a minimum order quantity of just one unit.

    Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

    For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

    We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

    We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

    Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
