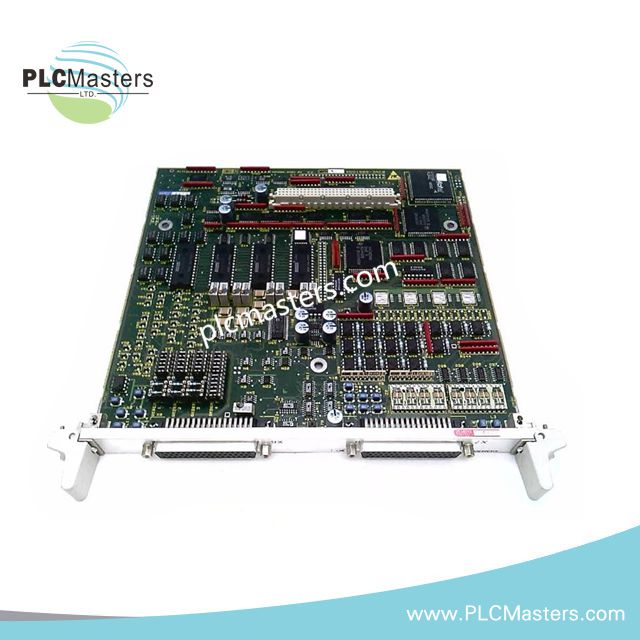

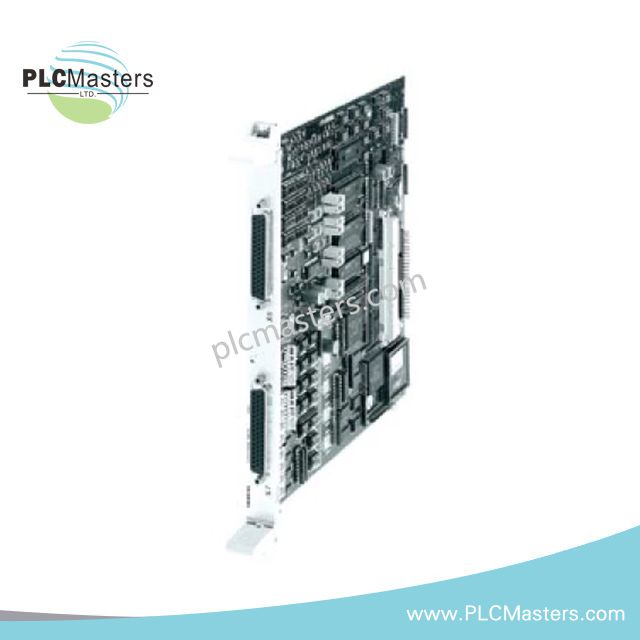

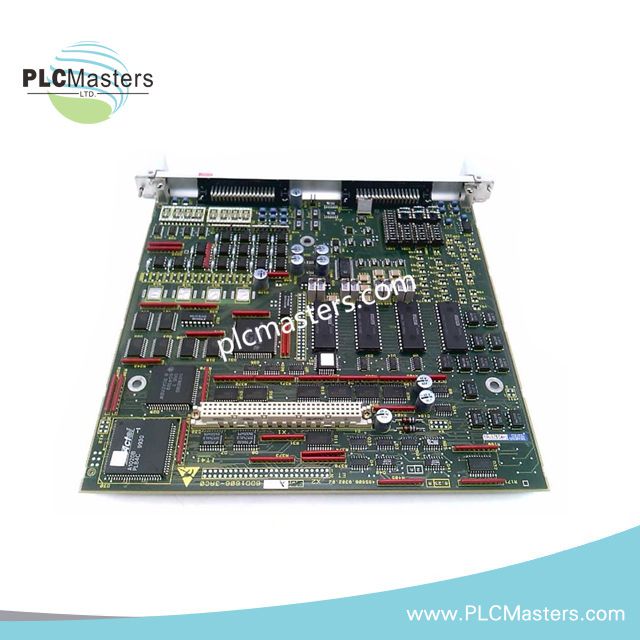

Siemens 6DD1606-3AC0 PC Module
$209.00
$530.00
Description
Product Description
The 6DD1606-3AC0 is a SIMADYN D PC module from Siemens, designed to provide interface and control capabilities within legacy SIMADYN D automation and drive control systems. It supports communication and signal processing between controllers and peripheral devices, offering robust performance for industrial environments. With integrated digital and analog I/O, as well as incremental encoder inputs, this module is essential for distributed control applications requiring precise monitoring and control.
Technical Specifications
| Attribute | Specification |
|---|---|
| Module Type | PC Module / Interface & Control |
| System Compatibility | SIMADYN D Automation and Drive Control Racks |
| Function | Signal interfacing, communication, and control |
| Supply Voltage | 24 V DC via backplane bus |
| Inputs/Outputs | 16 Digital I/O, 4 Analog I/O, 4 PT Incremental Encoder Inputs |
| Interfaces | Serial and parallel communication depending on configuration |
| Dimensions (H×W×D) | 160 × 40 × 120 mm |
| Weight | 0.88 lbs |
| Mounting | Rack-mounted, plug-in installation |
| Protection Rating | IP20 |
| Operating Temperature | 0…60 °C |
| Storage Temperature | -40…70 °C |
| Relative Humidity | 5…95% non-condensing |
| CPU Compatibility | SIMADYN D IT41 and related modules |
Key Features
-
Reliable Communication: Maintains stable data exchange between SIMADYN D controllers and connected devices
-
Multi-I/O Support: Handles 16 digital and 4 analog channels, plus incremental encoder inputs
-
Industrial Reliability: Built for continuous operation in harsh automation environments
-
Compact Integration: Fits into standard SIMADYN D racks with minimal space usage
-
Flexible Connectivity: Supports serial and parallel communication depending on system configuration
Applications
Used in legacy SIMADYN D systems for drive control, process automation, and distributed industrial control setups. Ideal for systems requiring both digital/analog I/O and incremental encoder inputs in a single plug-in module.
Similar Model Comparison
-
6DD1601-0AE0: Communication processor for PG16 controllers
-
6DD1600-0AJ0: Standard interface module for general SIMADYN D signal exchange
FAQ
Q: How many inputs and outputs does this module support?
A: 16 digital I/O, 4 analog I/O, and 4 incremental encoder inputs.
Q: Which controllers are compatible with this module?
A: Compatible with SIMADYN D IT41 and related control modules.
Q: Can this module be used in modern automation systems?
A: It is intended for legacy SIMADYN D systems; modern applications use SIMATIC or SINAMICS platforms.
