Siemens 6DD1610-0AK0 Memory Submodule
$209.00
$530.00
Description
Product Description

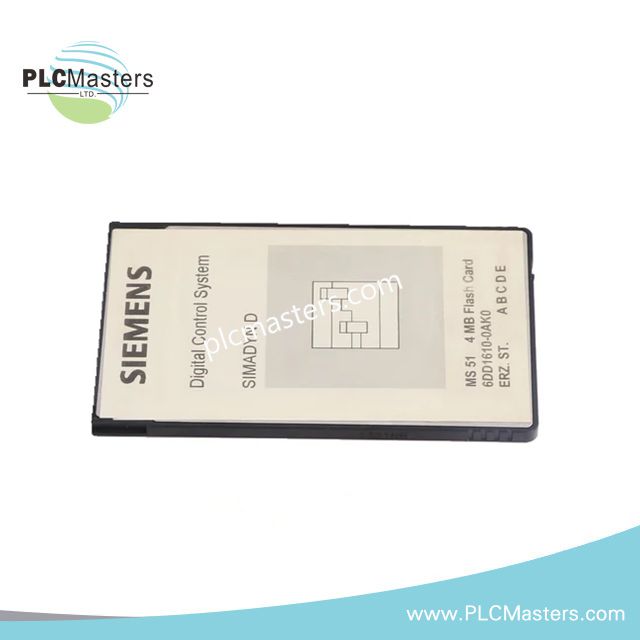

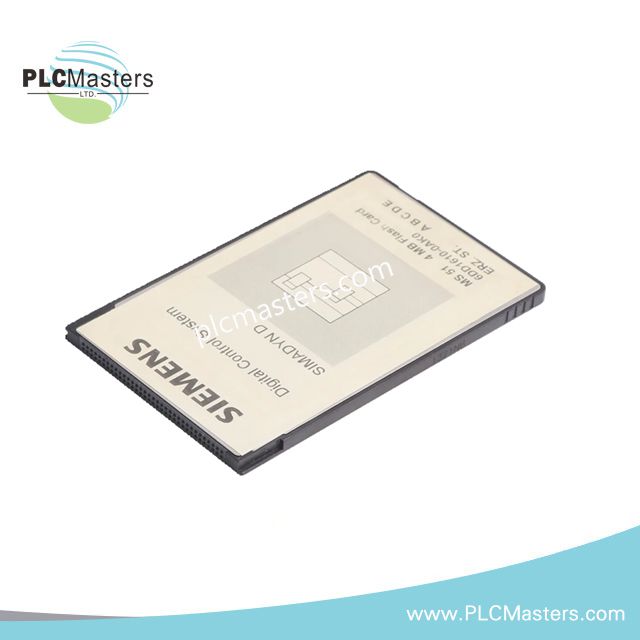

The 6DD1610-0AK0 is a SIMADYN D memory submodule engineered by Siemens for legacy digital control platforms. It serves as a non-volatile storage unit for firmware, system configuration, and application-specific parameters required by SIMADYN D controllers. By combining EPROM and EEPROM technologies, the module ensures secure data retention and consistent controller startup behavior, even after power interruptions.
Designed for long-term industrial use, this submodule plays a critical role in maintaining operational continuity in drive systems, power generation equipment, and process automation installations.
Technical Specifications
| Attribute | Specification |
|---|---|
| Module Type | Memory Submodule |
| System Compatibility | SIMADYN D Control Systems |
| Memory Technology | EPROM + EEPROM |
| Storage Capacity | Typically 512 KB EPROM + 2 KB EEPROM |
| Function | Stores firmware, configuration data, and user-defined parameters |
| Hardware Format | Plug-in PCB module |
| Socket Configuration | Mixed 28-pin and 32-pin chip sockets |
| Supply Voltage | 24 V DC via system backplane |
| Dimensions (H×W×D) | 160 × 40 × 120 mm |
| Weight | 0.35 kg |
| Mounting | Rack-based plug-in installation |
| Protection Class | IP20 |
| Operating Temperature | 0…60 °C |
| Storage Temperature | -40…70 °C |
| Humidity | 5…95% non-condensing |
Key Features
-
Persistent Data Storage: Maintains firmware and configuration without power supply
-
Hybrid Memory Design: EPROM for fixed program code, EEPROM for adjustable parameters
-
Stable System Operation: Ensures reliable boot and execution of SIMADYN D controllers
-
Industrial Reliability: Built for continuous use in harsh environments
-
Seamless Integration: Direct installation into SIMADYN D racks without additional adaptation
Applications
Widely used in SIMADYN D-based systems across heavy industry sectors such as turbine control, rolling mills, and large-scale motor drives. The module is essential where consistent parameter storage and system reliability are required.
Similar Model Comparison
-
6DD1610-0AG1: MS41 memory submodule with comparable capacity and architecture
-
6DD1611-0AE0: Extended memory module for larger control programs
FAQ
Q: What type of information is stored in this module?
A: It holds operating system firmware, configuration settings, and user-defined control parameters.
Q: Can the memory be modified?
A: EEPROM sections allow parameter updates, while EPROM requires dedicated programming equipment.
Q: Is this module still manufactured?
A: No, it is a legacy component and is typically sourced from spare parts suppliers.
