Siemens 6DD1662-0AB0 Communication Carrier Module
$209.00
$530.00
Description
Product Description

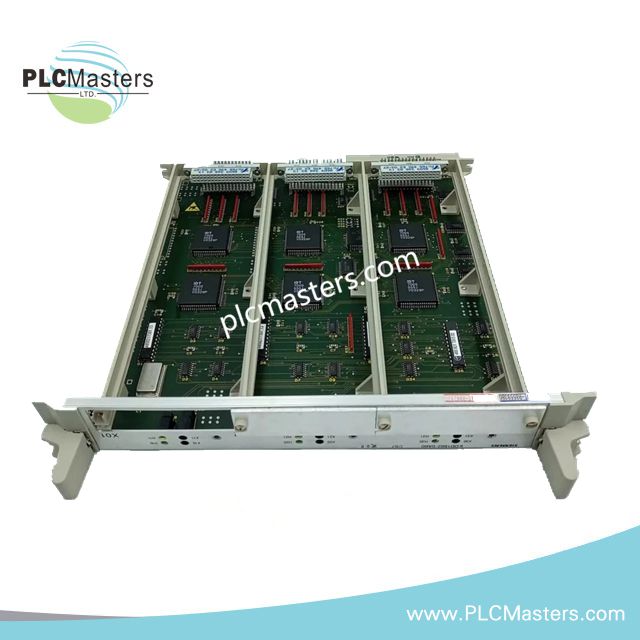

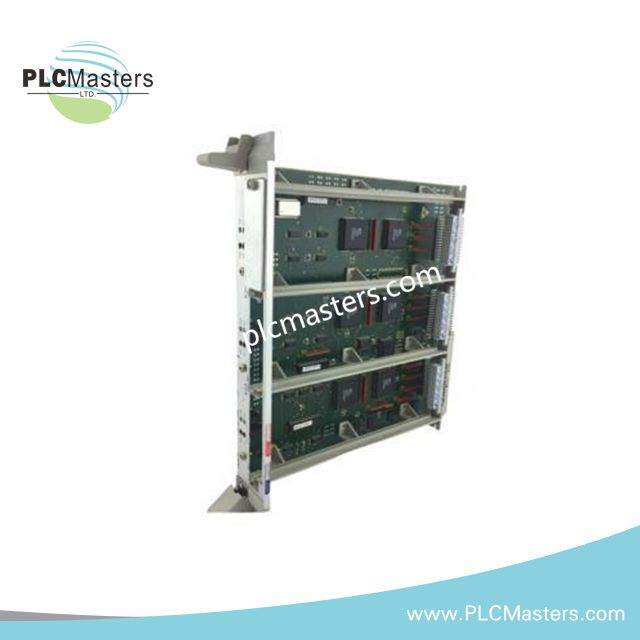

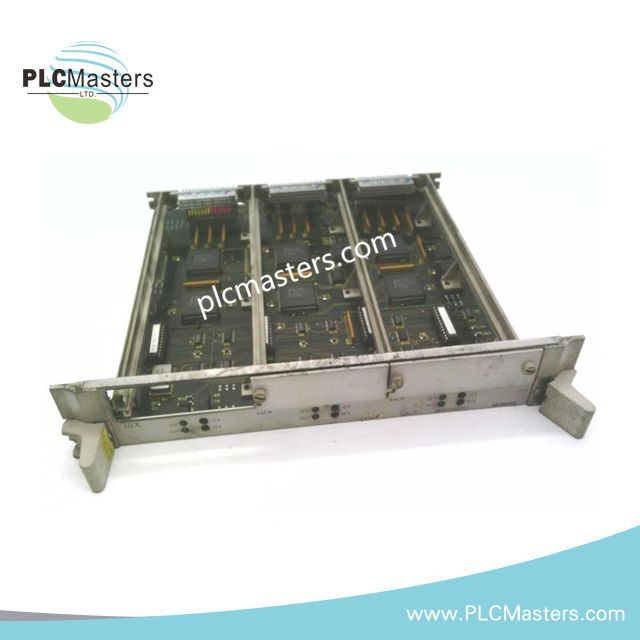

The 6DD1662-0AB0 is a SIMADYN D CS7 communication carrier module from Siemens, developed to expand communication capabilities within SIMADYN D control systems. It acts as a central carrier platform for up to three communication submodules, enabling structured integration of field interfaces and data exchange channels.
Designed for legacy drive and automation systems, this module supports reliable signal routing and communication between controllers and external equipment, ensuring stable operation in distributed control environments.
Technical Specifications
| Attribute | Specification |
|---|---|
| Module Type | Communication Carrier / Interface Module (CS7) |
| System Compatibility | SIMADYN D Control and Drive Systems |
| Function | Carrier for communication submodules and signal interfacing |
| Submodule Capacity | Up to 3 communication submodules |
| Supply Voltage | 24 V DC via backplane bus |
| Interfaces | Dependent on installed communication submodules |
| Dimensions (H×W×D) | 160 × 40 × 120 mm |
| Weight | 1.23 lbs |
| Mounting | Rack-mounted plug-in module |
| Protection Rating | IP20 |
| Operating Temperature | 0…60 °C |
| Storage Temperature | -40…70 °C |
| Relative Humidity | 5…95% non-condensing |
Key Features
-
Modular Communication Expansion: Supports installation of up to three communication submodules
-
Centralized Interface Platform: Simplifies integration of multiple communication channels
-
Stable Data Handling: Ensures reliable signal exchange within SIMADYN D systems
-
Industrial-Grade Design: Suitable for continuous operation in harsh environments
-
Flexible Configuration: Communication interfaces depend on selected submodules
Applications
Primarily used in SIMADYN D-based drive control systems, large-scale industrial automation, and process plants. Suitable for applications requiring multiple communication interfaces managed through a single carrier module.
Similar Model Comparison
-
6DD1601-0AE0: Dedicated communication processor module
-
6DD1602-0AE0: Interface module with integrated communication functionality
FAQ
Q: What is the main role of this module?
A: It acts as a carrier for communication submodules, enabling multiple communication interfaces within one slot.
Q: How many submodules can be installed?
A: Up to three communication submodules can be mounted on the CS7 carrier.
Q: Does this module include communication ports directly?
A: No, communication interfaces depend on the installed submodules.
