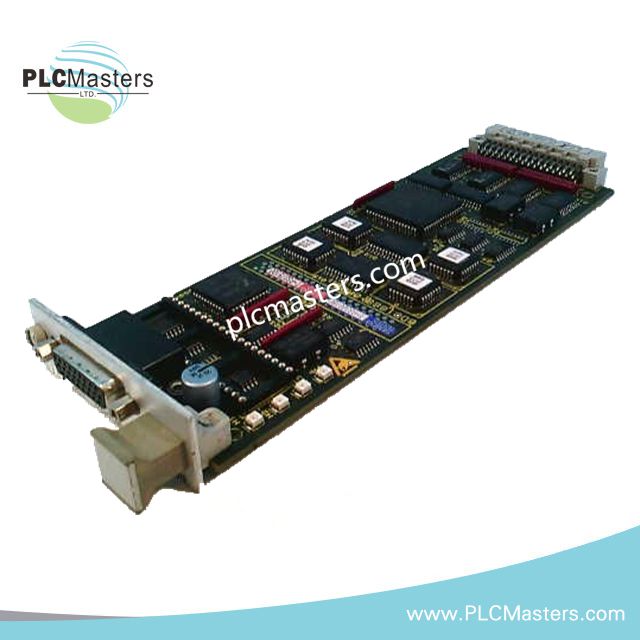

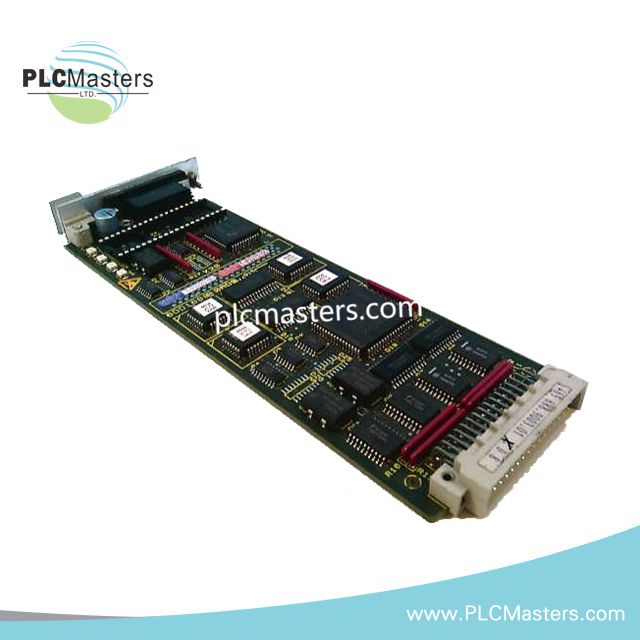

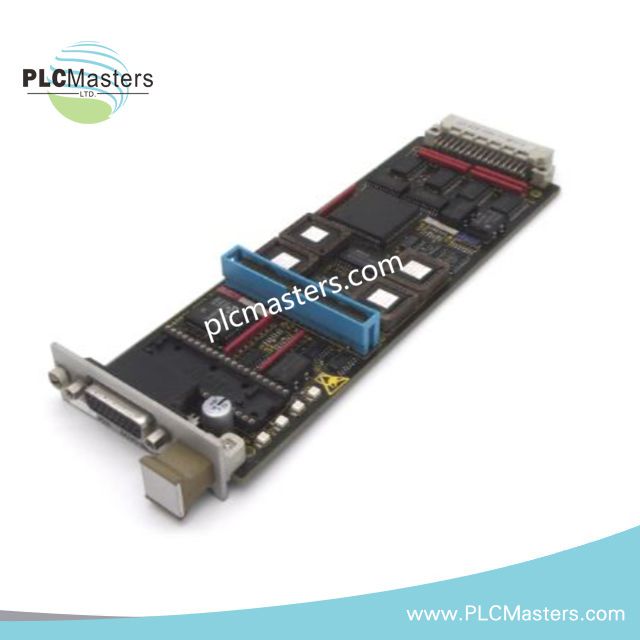

Siemens 6DD1688-0AD0 Communication Submodule
$209.00
$530.00
Description
Product Description
The 6DD1688-0AD0 is a dedicated communication submodule from Siemens, designed for legacy SIMADYN D digital control systems. It functions as an interface and control unit within SIMADYN D racks, facilitating reliable communication and signal processing between controllers and connected peripheral devices.
Engineered for distributed control applications, this module ensures stable data exchange, supporting drive systems, turbine regulation, and process automation. Its compact plug-in design allows seamless integration and replacement within SIMADYN D racks, maintaining system integrity in demanding industrial environments.
Technical Specifications
| Attribute | Specification |
|---|---|
| Module Type | Interface / Communication Submodule |
| System Compatibility | SIMADYN D Digital Control Racks |
| Function | Signal processing and communication management |
| Supply Voltage | 24 V DC via backplane bus |
| Connection Type | Plug-in module with front connector |
| Communication Interfaces | Serial and parallel (configuration dependent) |
| Dimensions (H×W×D) | 160 × 40 × 120 mm |
| Weight | 0.49 lbs |
| Mounting | Rack-mounted, plug-in installation |
| Protection Rating | IP20 |
| Operating Temperature | 0…60 °C |
| Storage Temperature | -40…70 °C |
| Relative Humidity | 5…95% non-condensing |
Key Features
-
Stable Communication: Guarantees consistent data exchange between SIMADYN D controllers and connected devices
-
Signal Integration: Handles multiple communication protocols for CS7 systems
-
Compact Form Factor: Fits into SIMADYN D racks with minimal space usage
-
Industrial Reliability: Built for continuous operation under demanding conditions
-
Easy Installation: Plug-in design simplifies replacement and maintenance
Applications
Ideal for legacy SIMADYN D installations requiring communication submodules, including drive control systems, turbine management, and distributed process automation networks.
Similar Model Comparison
-
6DD1662-0AB0: Interface/control module with multi-submodule carrier capability
-
6DD1681-0CB2: Lightweight digital interface unit for basic signal processing
FAQ
Q: Can this module handle both serial and parallel signals?
A: Yes, the communication type depends on the specific configuration used within the CS7 system.
Q: Is the 6DD1688-0AD0 still in production?
A: No, it is a legacy SIMADYN D part and is mainly available through specialized spare parts suppliers.
Q: What precautions are needed during installation?
A: Ensure correct alignment with the front connector and handle carefully to avoid signal integrity issues.
