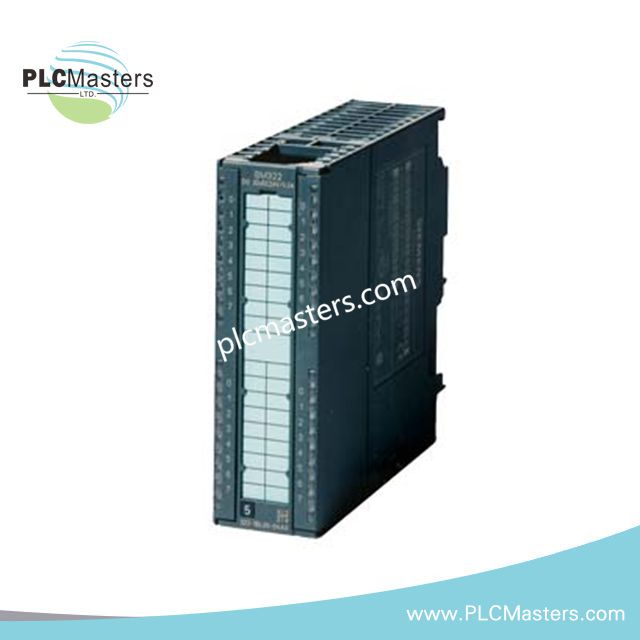

Siemens 6ES7322-1BH01-0AA0 Digital Output Module
$209.00
$530.00
Description
Product Description
The 6ES7322-1BH01-0AA0 from Siemens is a high-performance digital output module for the SIMATIC S7-300 PLC system, offering precise and reliable control of 16 DC load channels. Designed for industrial automation, this module efficiently manages actuators including relays, solenoids, and indicator lights. Its compact footprint and robust construction make it suitable for dense control cabinets and demanding operational environments.
Technical Specifications
| Attribute | Specification |
|---|---|
| Module Type | Digital Output (16×DC24V / 0.5A) |
| Channels | 16 |
| Output Voltage | 24 V DC |
| Max Output Current | 0.5 A per channel |
| Total Module Current | 8 A |
| Switching Technology | Transistor outputs |
| Isolation | Optically isolated from backplane bus |
| Signal Type | Binary ON/OFF |
| Connector | Front connector (screw or spring type, 40-pin) |
| Power Consumption | 1 W |
| Dimensions (H×W×D) | 125 × 40 × 120 mm |
| Weight | 200 g |
| Mounting | Plug-in for S7-300 rack |
| Protection Class | IP20 |
| Operating Temperature | 0…60 °C |
| Storage Temperature | -40…70 °C |
| Relative Humidity | 5…95%, non-condensing |
Key Features
-
Compact 16-channel digital output design for space-saving installations
-
Fast, reliable transistor switching for DC actuators
-
Full optical isolation to protect the PLC backplane from field disturbances
-
Flexible wiring compatibility with screw-type or spring-type connectors
-
Suitable for controlling solenoids, relays, and indicator lamps
Applications
Ideal for factory automation, process control, and machine operation systems requiring multiple 24 V DC output channels. Frequently deployed in control panels where reliable actuator management is critical.
Similar Model Comparison
-
6ES7322-1BL00-0AA0: 16×24V DC outputs, high-speed switching
-
6ES7322-1BH02-0AA0: 32×24V DC outputs for high-density applications
FAQ
Q: Can this module handle inductive loads like solenoids?
A: Yes, the module supports inductive loads up to 0.5 A per channel with appropriate wiring.
Q: Is the module hot-swappable?
A: No, ensure the PLC is powered down before installation or removal.
Q: What connector types are compatible?
A: Compatible with 40-pin screw-type or spring-type front connectors (6ES7193 series).
