Siemens 6ES7412-2XJ05-0AB0 Central Processing Unit
$209.00
$530.00
Description
Product Description

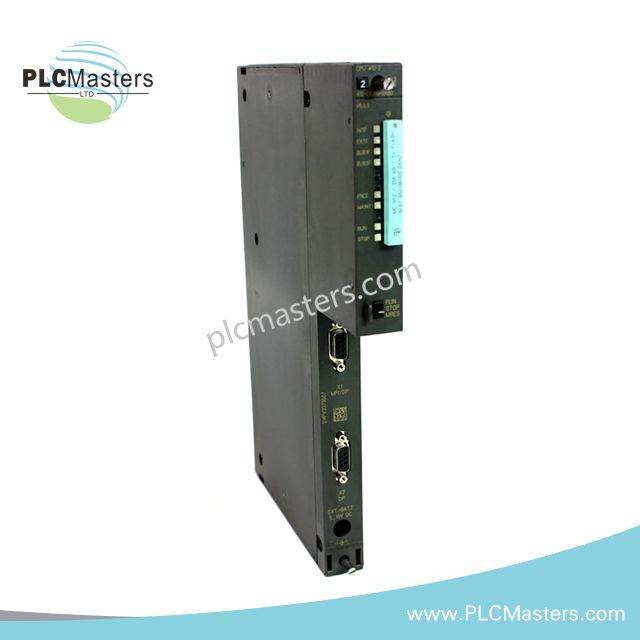

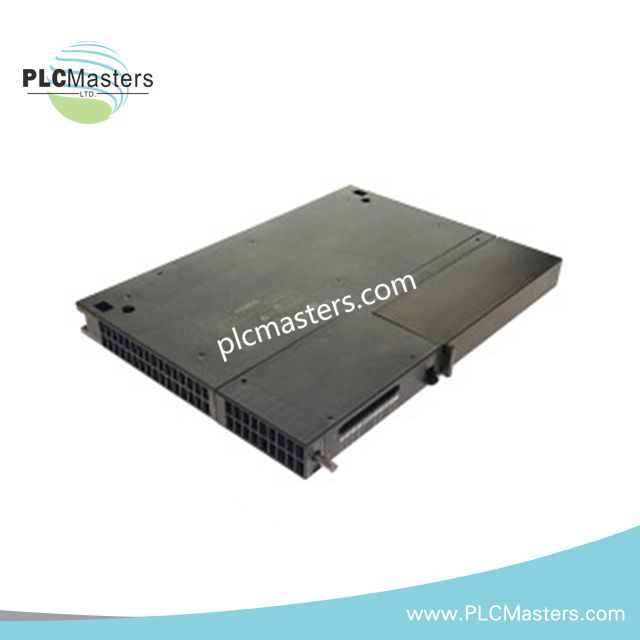

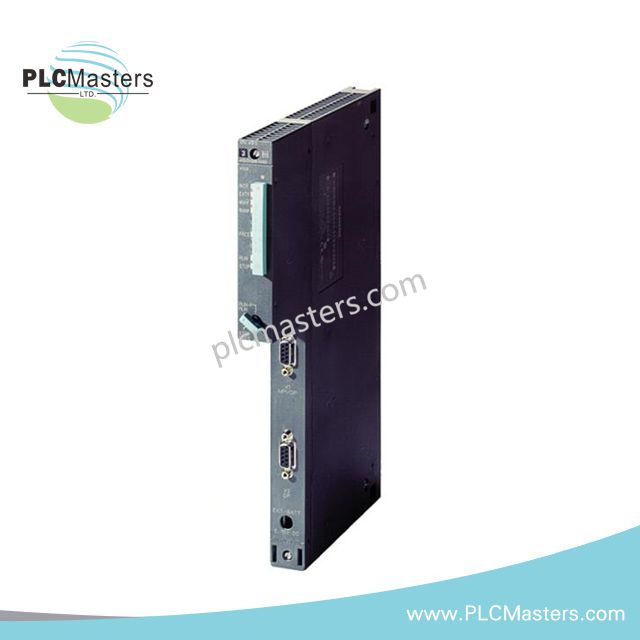

The Siemens 6ES7412-2XJ05-0AB0 is a CPU 412‑2 central processing unit engineered for medium-scale automation applications, offering enhanced performance over earlier 412 series models. It delivers reliable processing, dual integrated communication interfaces, and flexible memory management, enabling seamless control in industrial automation and process control systems.
Equipped with 512 KB of work memory (split evenly between code and data), the 6ES7412-2XJ05-0AB0 supports larger and more complex control programs. Memory expansion via MMC (Micro Memory Card) ensures adaptability for evolving automation needs. Dual MPI/DP ports allow direct PROFIBUS connectivity for distributed I/O, HMIs, and other networked controllers.
The CPU supports global data exchange, S7 communication, PG/OP connections, and isochronous mode for PROFIBUS, making it compatible with synchronized process operations. Rated for 24 V DC supply via the S7‑400 system power module, it operates reliably in industrial environments with operating temperatures from 0 °C to 60 °C.
Designed for S7‑400 racks, the compact module allows easy integration alongside other PLC modules and ensures long-term service in demanding industrial applications. It is fully backward-compatible with legacy 412 systems and can be substituted with model 6ES7412-2XK07-0AB0 if required.
Technical Specifications
| Attribute | Details |
|---|---|
| Brand | Siemens |
| Model | 6ES7412-2XJ05-0AB0 (CPU 412‑2) |
| System | SIMATIC S7‑400 PLC |
| Product Type | Central Processing Unit (CPU) |
| Work Memory | 512 KB (256 KB code / 256 KB data) |
| Load Memory | MMC required |
| Interfaces | 1 × MPI/PROFIBUS DP, 1 × PROFIBUS DP |
| Communication | PG/OP connections, S7 communication, global data communication |
| Isochronous Mode | Yes (PROFIBUS only) |
| Cycle Time | ~0.1 µs per instruction |
| Power Supply | 24 V DC via system power module |
| Operating Temperature | 0–60 °C |
| Max Number of I/O | 3,000 |
| Bit Memory Address Size | Up to 4 kByte |
| Dimensions | 290 × 50 × 210 mm |
| Weight | 0.7kg |
| Protection Rating | IP20 |
| Lifecycle Status | Discontinued (legacy S7‑400) |
Key Features
-
512 KB of work memory for larger automation programs.
-
Dual MPI/DP interfaces for PROFIBUS communication.
-
Supports global data communication and PG/OP connections.
-
Isochronous mode for synchronized PROFIBUS operations.
-
Compact and robust design for industrial environments.
-
Backward-compatible with previous CPU 412‑2 modules.
Applications
-
Factory Automation: Controlling production lines, robotic systems, and conveyor networks.
-
Process Control: Chemical plants, refineries, and continuous production systems.
-
Energy Systems: Monitoring turbines, generators, and distributed I/O networks.
-
Infrastructure: Large-scale building automation and transportation control.
FAQ
Q: What is the memory capacity of CPU 412‑2 (6ES7412-2XJ05-0AB0)?
A: It features 512 KB of work memory, with 256 KB for code and 256 KB for data, expandable via MMC.
Q: Does it support PROFIBUS synchronization?
A: Yes, it supports isochronous mode for PROFIBUS networks.
Q: Can this CPU replace older 412‑2 models?
A: Yes, it provides enhanced performance and can be substituted with model 6ES7412-2XK07-0AB0 if needed.
