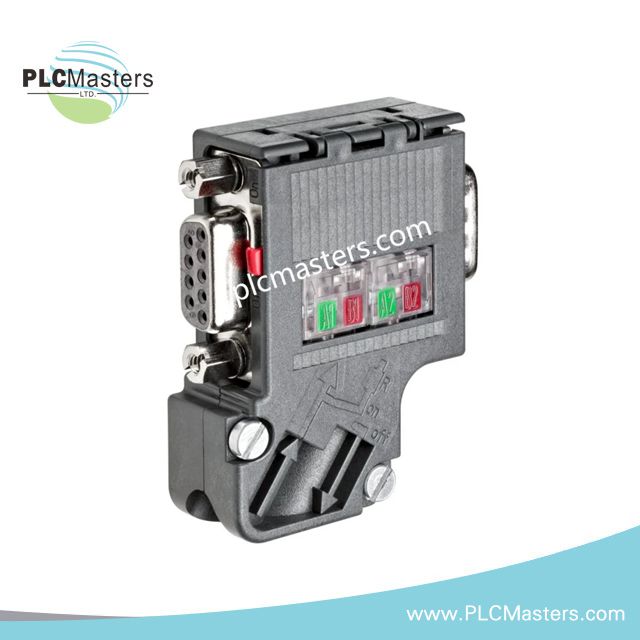

Siemens 6ES7972-OBB52-0XA0 PROFIBUS DP Connector S7 PLC
$209.00
$530.00
Description
Product Description
The Siemens 6ES7972-0BB52-0XA0 is a high-quality PROFIBUS DP connector designed for SIMATIC S7 PLC systems. Its compact 90° angled design allows installation in confined control cabinets while ensuring reliable, high-speed communication between PROFIBUS DP devices. Built with a durable metal housing and an integrated switchable termination resistor, this connector simplifies bus network setup and provides EMC protection for industrial environments.
Technical Specifications
| Feature | Specification |
|---|---|
| Connector Type | PROFIBUS DP bus connector |
| Cable Entry | 90° angled |
| Termination Resistor | Integrated, switchable |
| Data Rate | Up to 12 Mbps |
| Interface | Sub-D 9-pin (female) |
| Housing | Metal housing for shielding and durability |
| Dimensions | Compact for space-constrained installations |
| Compatibility | SIMATIC S7 PLCs and PROFIBUS DP devices |
| Lifecycle Status | Active product, widely available |
Key Features
-
Angled design for efficient use of cabinet space
-
Built-in switchable termination resistor for easy bus configuration
-
Supports high-speed PROFIBUS DP communication up to 12 Mbps
-
Metal casing ensures mechanical stability and EMC protection
-
Quick installation with standard Sub-D 9-pin interface
Applications
-
Connecting PROFIBUS DP devices within SIMATIC S7 automation networks
-
Industrial environments requiring shielded, stable communication
-
Installations with limited space where angled connectors are preferred
Considerations
-
Designed specifically for PROFIBUS DP networks; not compatible with other fieldbus systems
-
Correct termination resistor configuration is critical for reliable communication
-
Ensure proper shielding and grounding for industrial use
FAQ
Q: Can this connector be used with non-SIMATIC devices?
A: It is optimized for SIMATIC S7 and PROFIBUS DP devices; compatibility with other systems is not guaranteed.
Q: What is the maximum data rate supported?
A: Up to 12 Mbps for PROFIBUS DP communication.
Q: Is the connector suitable for compact control cabinets?
A: Yes, the 90° angled design allows installation in tight spaces.
Q: Does it provide EMC protection?
A: Yes, the metal housing ensures shielding and mechanical stability.
