Siemens 6SL3210-1KE22-6UP1 Compact Frequency Converter
$209.00
$530.00
Description
Product Description

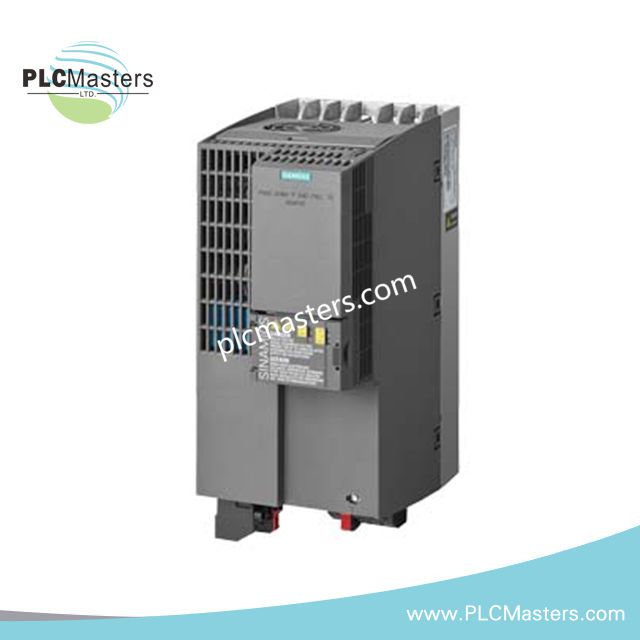

The Siemens SINAMICS G120C 6SL3210-1KE22-6UP1 is a compact, high-performance frequency converter designed for precise motor control in industrial automation. Its robust design ensures reliable operation, functional safety, and energy-efficient performance, suitable for a variety of industrial applications.
Technical Specifications
| Feature | Specification |
|---|---|
| Rated Power | 11 kW (low overload), 7.5 kW (high overload) |
| Input Voltage | 3-phase AC 380–480 V ±10% |
| Frequency Range | 47–63 Hz |
| Nominal Current | 25 A |
| Overload Capacity | Low overload: 150% for 3 s, 110% for 57 s, 100% for 240 s; High overload: 200% for 3 s, 150% for 57 s, 100% for 240 s |
| I/O Interfaces | 6 Digital Inputs, 2 Digital Outputs, 1 Analog Input, 1 Analog Output |
| Safety Functions | Integrated Safe Torque Off (STO) |
| Communication | PROFIBUS-DP |
| Protection Class | IP20 / UL Open Type |
| Cooling | Internal fan |
| Dimensions (H × W × D) | 295 × 140 × 203 mm |
| Compliance | RoHS Compliant |
| Lifecycle | Active product, standard stock item |
Key Features
-
Compact design for space-saving installation
-
Integrated PROFIBUS-DP for seamless automation network connectivity
-
Safe Torque Off (STO) ensures motor safety without external hardware
-
Flexible overload handling for both high and low duty cycles
-
Energy-efficient motor control reduces operational costs
Applications
-
Conveyor and material handling systems
-
Pumps and ventilation fans
-
Packaging and processing machinery
-
General industrial motor speed control
FAQ
Q: Can this drive control standard three-phase motors?
A: Yes, it supports standard three-phase AC induction motors with variable speed operation.
Q: Does it support communication with other automation devices?
A: Yes, the integrated PROFIBUS-DP allows full connectivity with PLCs and other PROFIBUS-enabled devices.
Q: What makes STO safer than external safety devices?
A: The built-in Safe Torque Off function immediately de-energizes the motor without additional safety relays, simplifying wiring and ensuring compliance with IEC 61508 standards.
Q: Are there similar models for different power ratings?
A: Yes, the SINAMICS G120C family offers models from 0.37 kW up to 75 kW, allowing selection based on load requirements.
