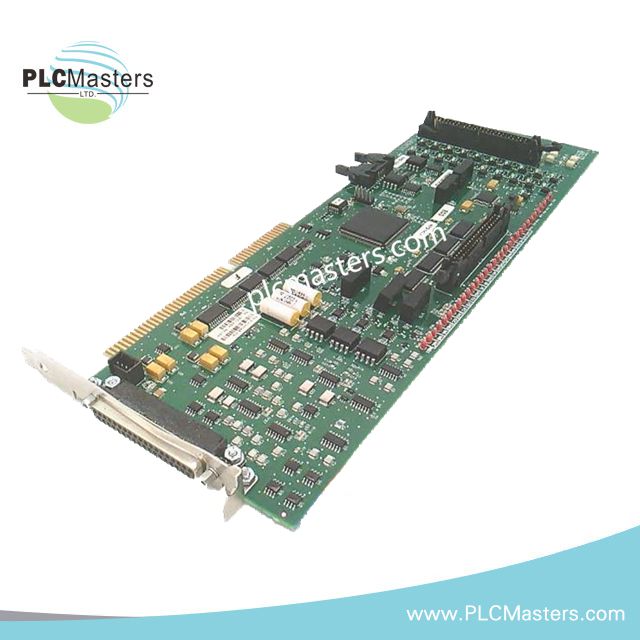

Siemens A1A10000423.00M Interface Circuit Board
$209.00
$530.00
Description
Product Description
The Siemens A1A10000423.00M is a high-precision I/O interface board engineered for Siemens GH180 high-voltage frequency converters. Designed for demanding industrial environments, this module provides reliable signal transmission, robust safety compliance, and flexible connectivity, ensuring stable operation in heavy-duty variable frequency drive (VFD) applications.
Technical Specifications
| Feature | Specification |
|---|---|
| Input Voltage | 24 VDC (board supply) |
| Output Voltage | 24 VDC |
| Output Current | 10 A |
| Drive System Voltage Range | 2.4–10 kV |
| Rated Motor Power (Drive System) | Up to 6000 kW |
| Operating Temperature | -40 °C to +85 °C (board), 0–40 °C (system environment) |
| Altitude | 0–3300 ft |
| Protection Class | IP21 |
| Dimensions (L × W × H) | 100 × 100 × 10 mm |
| Weight | 0.86 lbs |
| Material | Copper-clad laminate PCB |
| Signal Processing Speed | Up to 2 GHz |
| Connectivity Options | RS-232, RS-485, CANbus, Ethernet |
Key Features
-
High-precision control for stable VFD operation
-
Modular design enables easy replacement and system adaptation
-
Wide operating temperature range supports harsh environments (-40 °C to +85 °C)
-
Multiple communication protocols (RS-232, RS-485, CANbus, Ethernet)
-
Safety-compliant with CE and UL certifications
Applications
-
High-voltage VFDs in industrial plants
-
Power generation and electrical grid control systems
-
Automotive manufacturing and electronics production lines
-
Renewable energy systems requiring high-power, stable control
Considerations
-
Primarily intended as an OEM replacement for Siemens GH180 series drives
-
System environment is limited to 0–40 °C despite broader board tolerance
-
IP21 rating indicates suitability for indoor use only; not dustproof or waterproof
FAQ
Q: Can this board be used with other frequency converter series?
A: This board is specifically designed for GH180 series VFDs. Compatibility with other series is not guaranteed.
Q: What communication interfaces does it support?
A: It supports RS-232, RS-485, CANbus, and Ethernet for versatile connectivity options.
Q: How robust is the board in extreme conditions?
A: The board operates between -40 °C and +85 °C, making it suitable for extreme industrial conditions.
Q: Are there higher-power variants of this module?
A: The GH180 family accommodates various voltage and power ratings; consult Siemens documentation for compatible modules.
