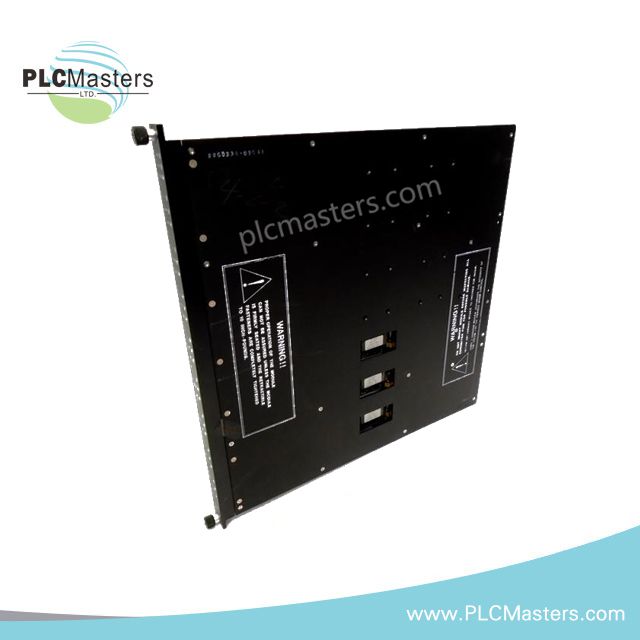

Triconex 3611E Digital Output Module
    Triconex 3611E Digital Output Module

    Triconex 3611E Digital Output Module

    • 1000 In stock

    • Manufacturer: Triconex

    • Product No.: 3611E

    • Condition： In stock

    • Product Type: Digital Output Module

    • Product Origin: USA

    • Payment:T/T, Western Union

    • Weight: 3180g

    • Shipping port: Xiamen

    • Warranty: 12 months

    {"id":41956037197914,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"3611E","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Triconex 3611E Digital Output Module","public_title":null,"options":["Default Title"],"price":14500,"weight":3180,"compare_at_price":31000,"inventory_management":"shopify","barcode":"USA","requires_selling_plan":false,"selling_plan_allocations":[]}

    Description

    Overview

    The Triconex 3611E is a Supervised Digital Output Module designed for safety-critical applications. It delivers reliable digital output control in harsh industrial environments. Engineers trust it for demanding process and safety systems. The module provides real-time diagnostics and robust isolation to ensure safe, continuous operation.

    Technical Specifications

    • Model Number: 3611E

    • Type: Supervised Digital Output Module

    • Manufacturer: Triconex

    • Nominal Voltage: 115 VAC

    • Voltage Range: 90–155 VAC

    • Frequency Range: 47–63 Hz

    • Maximum Switching Power: 2,000 VA (resistive load)

    • On-State Voltage Drop: <2V (typical)

    • Maximum Current: 2A per point

    • Peak Current: 10A per AC cycle

    • Minimum Load Requirement: 50 mA

    • Chassis Leakage: ≤1 mA @ 60 Hz

    • Load Leakage: ≤4 mA

    • Fuses: 2.5A fast-acting (one per output)

    • Point Isolation: ≥1,500 VDC

    • Diagnostic Indicators:

      • Output Status: POINT, PWR, LOAD

      • Module Status: PASS, FAULT, ACTIVE

    • Output Channels: 8 points

    • Output Voltage: 115 VAC

    • Weight: 7.01 lbs

    Features

    We welcome bulk orders and have a minimum order quantity of just one unit.

    Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

    For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

    We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

    We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

    Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
