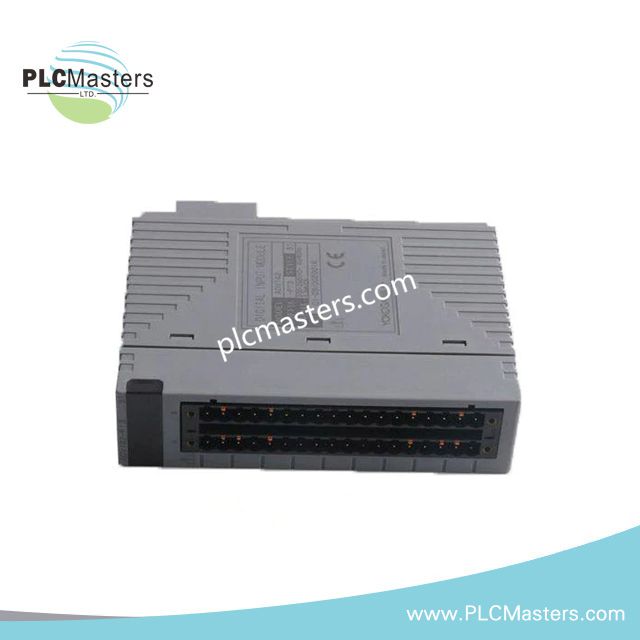

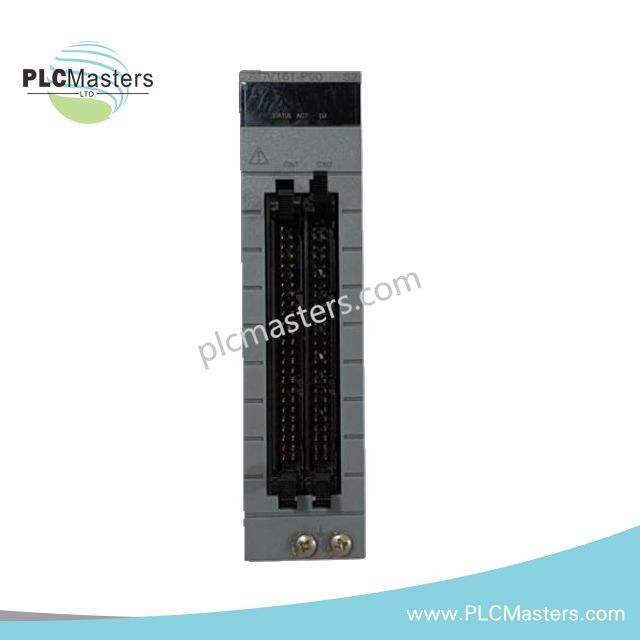

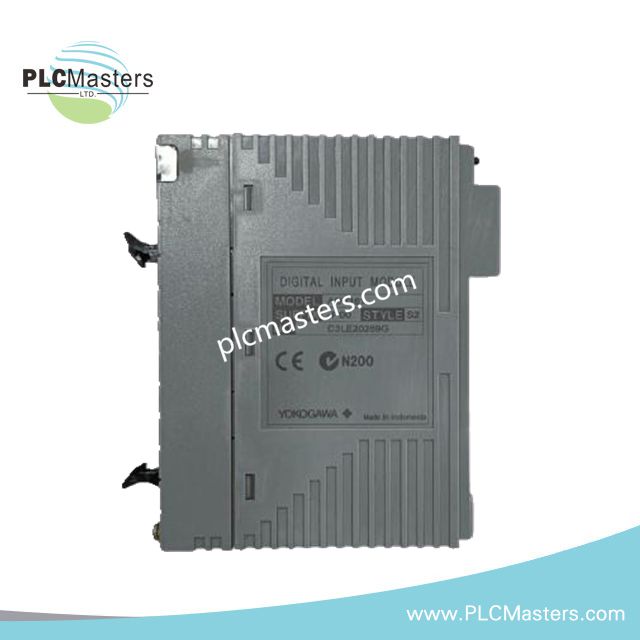

Yokogawa ADV161-P50 Digital Input Module
$264.00
$378.00
Description
Overview
The Yokogawa ADV161-P50 is a 64-channel digital input (DI) module designed for CENTUM VP and CENTUM CS 3000 control systems. Part of the FIO (Field I/O) subsystem, this module provides high-density acquisition of 24 V DC ON/OFF signals from field devices such as switches, relays, and interlock circuits. The P50 variant includes pushbutton input support, does not have status indicators, and lacks explosion protection, making it ideal for standard industrial environments.
Key Features
-
64-channel high-density digital input for compact cabinet installations
-
Compatible with 24 V DC sink/source signals
-
Pushbutton input functionality
-
Fast response time (~8 ms), suitable for interlocks and sequence logic
-
Lightweight and compact for space-constrained installations
-
Long-term industrial reliability
Technical Specifications
General Parameters
| Parameter | Specification |
|---|---|
| Model | ADV161-P50 |
| Module Type | Digital Input Module |
| Channels | 64 |
| Compatible Systems | CENTUM VP / CENTUM CS 3000 |
| Subsystem | FIO (Field I/O) |
| Manufacturer | Yokogawa, Japan |
| Mounting | FIO baseplate installation |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.30 kg |
Electrical Parameters
| Parameter | Specification |
|---|---|
| Rated Input Voltage | 24 V DC (Sink/Source) |
| Input ON Voltage | 20–26.4 V DC |
| Input OFF Voltage | ≤5 V DC |
| Input Current | 2.5 mA ±20% per channel @ rated voltage |
| Maximum Allowable Voltage | 30 V DC |
| Response Time | Approx. 8 ms |
| Isolation | Channel-to-system isolation |
Mechanical & Installation
-
High-density, compact, lightweight design
-
Pushbutton input version without status indicators
-
No explosion protection
Applications
-
Collecting ON/OFF signals from field devices in industrial control systems
-
Interlocks and sequential logic control
-
Dense cabinet or space-limited installations
-
Field I/O expansion for CENTUM VP / CS 3000
FAQ / Engineer Notes
Q1: What input types does ADV161-P50 support?
A1: Compatible with 24 V DC signals, suitable for sink/source wiring, dry contacts, relay outputs, and field switches.
Q2: Is the response time fast enough for interlocks?
A2: Yes, approximately 8 ms, suitable for fast interlock and sequence control.
Q3: What is the difference between P50 and P50R?
A3: P50 includes pushbutton input, no status display, and no explosion protection. P50R may include status indicators or additional features.
