Overview

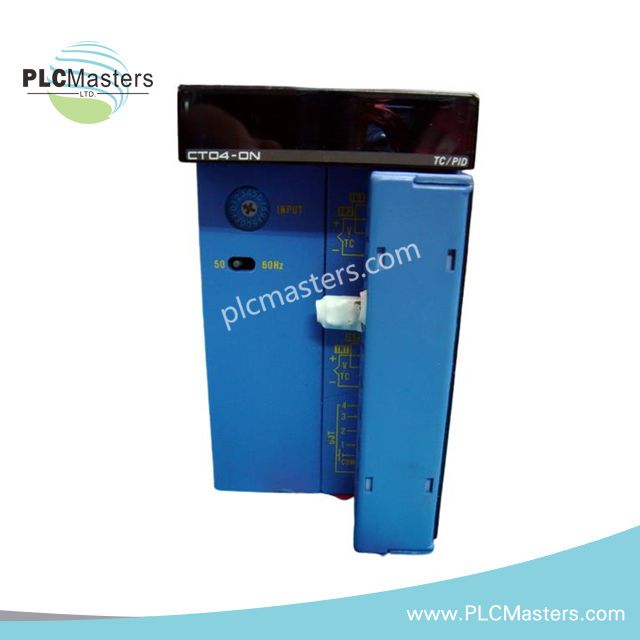

The Yokogawa F3CT04-0N is a temperature control module for the FA-M3 PLC series. It delivers precise multi-channel temperature regulation using advanced PID and fuzzy logic algorithms. Engineers can apply it in ovens, furnaces, chemical reactors, and HVAC control systems. The module ensures reliable performance with auto-tuning and smooth manual-to-auto transitions.
Technical Specifications
-
Model Number: F3CT04-0N
-
Module Type: Temperature Control Module
-
Number of Channels: 4 channels
-
Input Types Supported: 14 thermocouple types, 2 DC voltage types
-
Input Range: Selectable per channel via software
-
Input Impedance: ≥ 20 MΩ
-
Sampling Period: 125 ms (1 ch), 250 ms (2 ch), 500 ms (4 ch)
-
Control Method: PID continuous, time-proportional, fuzzy logic
-
Output Tracking: Bumpless auto/manual switching
-
Preset Value Tracking: Smooth transition between preset values
-
Mounting Type: Plug-in module for FA-M3 base units
-
Operating Temperature: 0°C to +55°C
-
Storage Temperature: -20°C to +75°C
-
Humidity Range: 5% to 95% RH non-condensing
-
Power Supply: 24 V DC, 200 mA
-
Weight: 0.24 lbs
