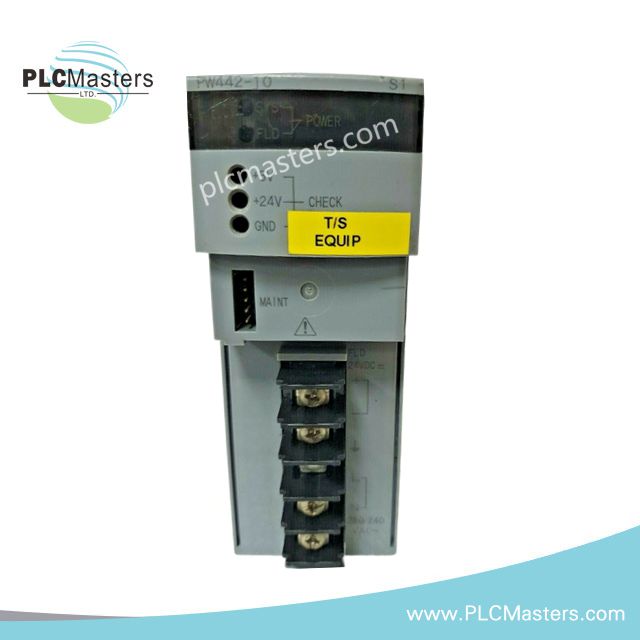

Yokogawa PW442-10 Power Supply Module

Overview

The Yokogawa PW442-10 is a reliable power supply module for CENTUM VP FCS systems. It converts AC or DC input to stable, regulated DC output. The module ensures continuous operation of control system circuits. It supports dual redundant configurations for enhanced system reliability. Its compact design allows flexible DIN rail or rack mounting. The module is built for industrial environments, maintaining performance under varying temperatures and humidity.

Technical Specifications

• Model Number: PW442-10

• Function: Power Supply Module

• Input Voltage: 100–120 V AC, 200–240 V AC, 24 V DC (selectable)

• Frequency: 50/60 Hz

• Output Voltage: +5 V DC, +24 V DC

• Output Current: +5 V: 10 A, +24 V: 2 A

• Output Capacity: 100 W (typical)

• Operating Temperature: 0 to 50 °C (32 to 122 °F)

• Storage Temperature: -20 to 60 °C (-4 to 140 °F)

• Relative Humidity: 10 to 90% RH, non-condensing

• Mounting: DIN rail or rack within dedicated cabinet

• Redundancy Support: Supports dual redundant power supply

• Cooling Method: Passive or forced air depending on system

• Environmental Rating: Industrial-grade, suitable for harsh conditions

• Dimensions (W x H x D): 50 x 140 x 180 mm

• Weight: 0.3 kg
