Overview

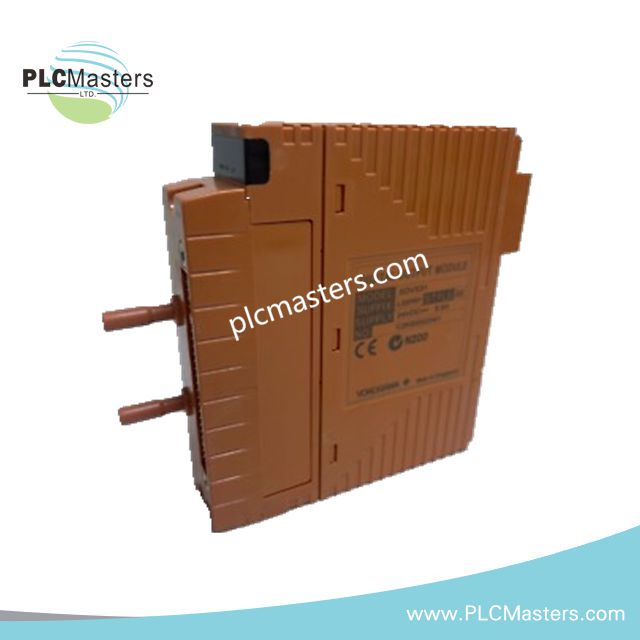

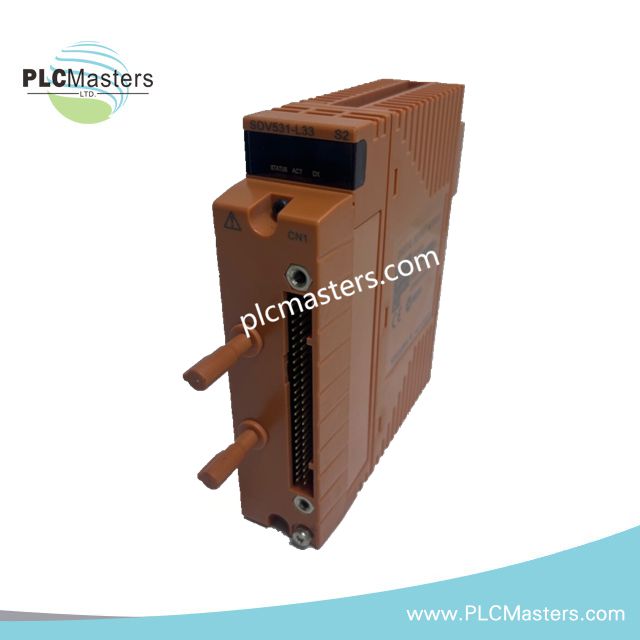

The SDV531-L33/PRP is a high-availability digital output module developed by Yokogawa for use in both CENTUM VP distributed control systems and ProSafe-RS safety instrumented systems.
It delivers 16 independent, galvanically isolated 24 V DC transistor outputs and integrates PRP (Parallel Redundancy Protocol) networking to ensure continuous operation with zero recovery time in redundant Ethernet architectures.
Designed for critical control and safety applications, this module emphasizes deterministic output behavior, robust diagnostics, and long-term operational stability in harsh industrial environments.
Key Functional Characteristics
-
16 isolated digital output points per module
-
24 V DC transistor outputs optimized for fast and reliable switching
-
Native PRP support compliant with IEC 62439-3 for seamless network redundancy
-
Continuous output status monitoring and internal self-diagnostics
-
Compatible with Yokogawa FIO baseplates and redundant system configurations
-
Hot-swap capable when installed in redundant architectures
Electrical Specifications
-
Nominal output voltage: 24 V DC
-
Output load current: up to 0.5 A per channel (typical for SDV531 series)
-
Output type: Low-side transistor switching
-
Isolation:
-
Channel-to-channel isolation
-
Channel-to-system bus isolation
-
Built-in protection against short circuit and overcurrent conditions
System Compatibility
-
CENTUM VP Distributed Control System
-
ProSafe-RS Safety Instrumented System
-
Yokogawa FIO (Field I/O) subsystem
-
Redundant Ethernet architectures using PRP networks
Diagnostics and Monitoring
-
Real-time output ON/OFF state detection
-
Module health and internal fault supervision
-
Communication integrity monitoring over PRP networks
-
Diagnostic data available to host controllers for maintenance planning
Environmental and Mechanical Data
-
Operating temperature range: 0 °C to 55 °C
-
Storage temperature range: −40 °C to 70 °C
-
Relative humidity: 5–95% non-condensing
-
Cooling method: Passive natural convection
-
Installation: Slot-mounted on Yokogawa FIO baseplates
-
Construction: Industrial-grade components designed for high EMC immunity
Typical Applications
-
Emergency shutdown and interlock systems
-
Solenoid valve actuation
-
Alarm annunciators and status indicators
-
Safety-related output control in oil & gas, chemical processing, power generation, and petrochemical plants
FAQ
Is the SDV531-L33/PRP suitable for safety systems?
Yes. The module is designed for integration with ProSafe-RS SIS platforms and supports high-availability networking using PRP.
What advantage does PRP provide compared to standard redundancy?
PRP allows two parallel Ethernet networks to operate simultaneously, eliminating switchover delays and preventing packet loss during network faults.
Can the module be replaced while the system is running?
When used in a properly configured redundant system, hot replacement is supported, reducing maintenance downtime.
