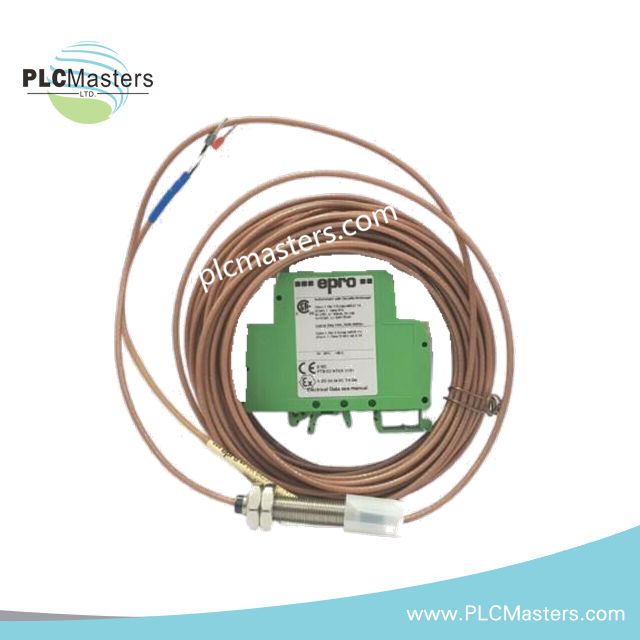

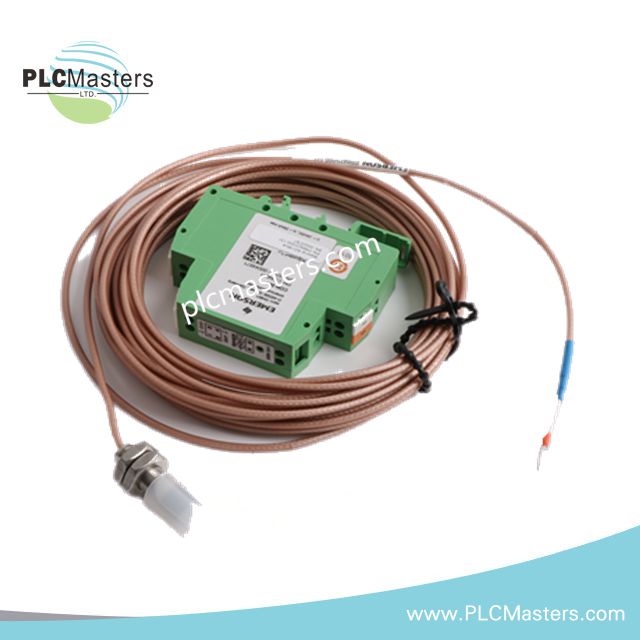

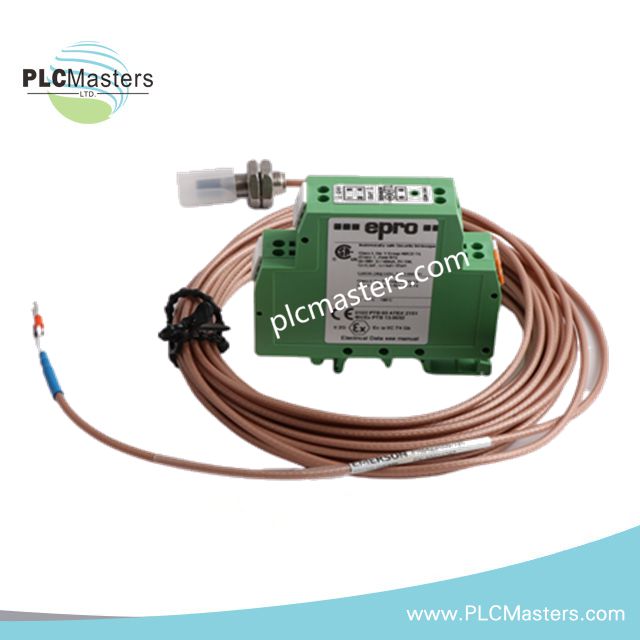

Epro CON021/913-040+PR6423/015-000-CN Eddy Current Sensor Kit

Product Description

The CON021/913-040 + PR6423/015-000-CN assembly from Emerson EPRO is a matched eddy current measurement solution intended for non-contact monitoring of shaft dynamics in high-speed rotating equipment. This integrated set combines a signal conversion unit with an 8 mm proximity probe, enabling accurate detection of displacement, vibration, and shaft position in critical machinery.

Engineered for reliability and measurement stability, the system delivers conditioned analog signals suitable for integration with protection systems and condition monitoring platforms used in power generation and process industries.

Technical Specifications

Model Combination: CON021/913-040 + PR6423/015-000-CN
Manufacturer: Emerson EPRO
Product Type: Eddy Current Converter with Proximity Sensor

Measurement Performance

• Frequency bandwidth: 0 to 20 kHz (-3 dB)

• Signal rise time: < 15 µs

Sensor Details

• Probe type: Eddy current proximity sensor

• Model: PR6423/015-000-CN

• Tip diameter: 8 mm

• Measurement principle: Non-contact eddy current

Electrical Parameters

• Supply voltage range: -23 VDC to -32 VDC

• Output signal ranges:

• -4 V to -20 V

• -2 V to -18 V

Environmental Conditions

• Operating temperature: -30°C to +100°C

• Shock/vibration resistance: 5 g at 60 Hz

• Protection rating: IP20 (converter module)

Mechanical Characteristics

• Housing material: Aluminum alloy (LMgSi 0.5 F22)


• Mounting: 4 × M5 screws

Interface & Connectivity

• Sensor connection: Self-locking LEMO-type connector

• Designed for direct interface with monitoring systems and protection racks

Application Scope

• Turbine shaft displacement and vibration monitoring

• Compressor and pump condition surveillance

• Axial and radial position measurement

• Shaft eccentricity and dynamic behavior analysis

• Industrial fans and high-speed rotating systems

Operational Advantages

• Integrated probe and converter pairing ensures measurement consistency

• High-frequency response supports transient and dynamic signal capture

• Compact and lightweight module suitable for cabinet installation

• Compatible with broader PR642x sensor family (PR6422–PR6426)

Important Considerations

• IP20 enclosure requires installation inside protected cabinets or control panels

• Stable DC power supply is essential to maintain signal accuracy

• Sensor-converter matching should be verified for extended measurement ranges

FAQ

Q: Can this system be used with other PR642x probes?
A: Yes, the converter supports PR6422 through PR6426 sensors. However, optimal performance is achieved with the included PR6423 probe.

Q: Is the unit suitable for outdoor installation?
A: The converter has an IP20 rating and should be installed in a protected enclosure. The probe itself may tolerate harsher environments depending on installation.

Q: What parameters can be monitored with this system?
A: It measures shaft displacement, vibration amplitude, position, and eccentricity in rotating machinery.
