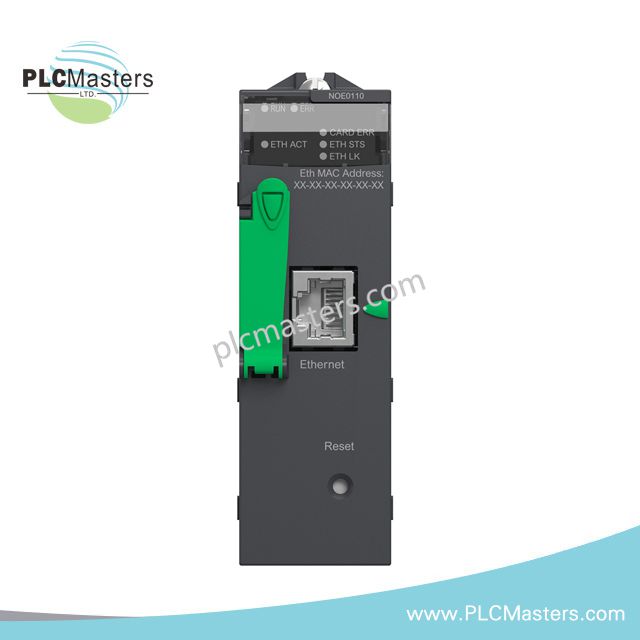

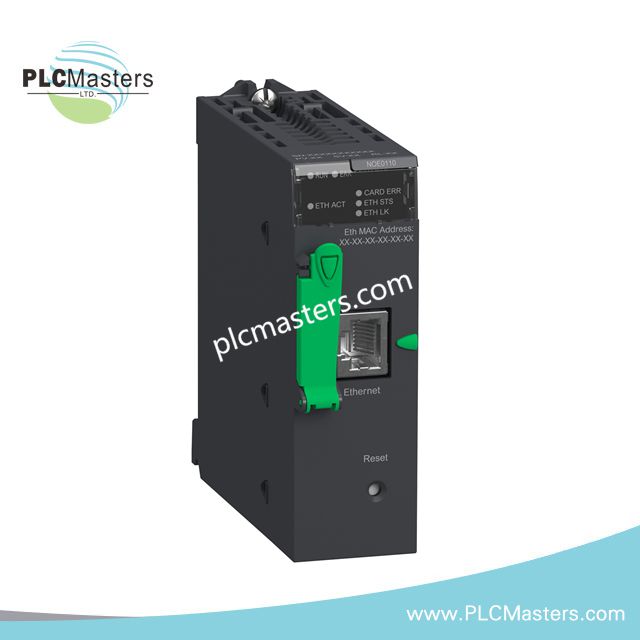

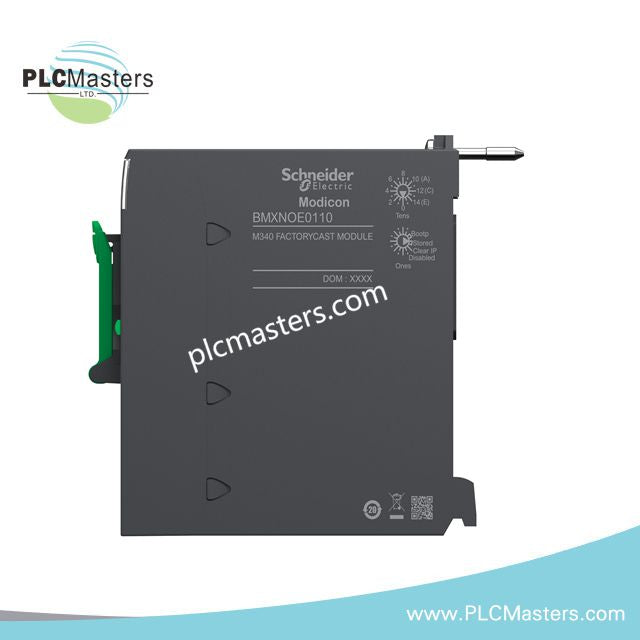

Schneider BMXNOE0110 Ethernet TCP/IP Network Module

Overview

The Schneider BMXNOE0110 is an Ethernet TCP/IP network module for the Modicon M340 platform. It enables fast and reliable communication using the Modbus TCP protocol. The module includes a flash memory card and 16 MB of internal RAM. It supports advanced web services and diagnostics for industrial automation. A single RJ45 10/100 port provides seamless Ethernet connectivity. BMXNOE0110 offers robust performance in standard industrial environments.

Technical Specifications

• Product Series: Modicon M340 Automation Platform

• Module Type: TCP/IP Ethernet network module

• Concept: Transparent Ready

• Ethernet Port: 1 x RJ45 10BASE-T/100BASE-TX

• Memory: 16 MB internal RAM, includes BMXRWSC016M flash card

• Web Services: SOAP XML server, configurable network server

• Communication Services: Bandwidth management, FDR server, SNMP network management

• Indicators: 1 green LED for Ethernet activity, 1 green LED for processor run

• Additional LEDs: Green for network status, red for 100 Mbps, card error, and system fault

• Control: RESET button for cold start

• Power Supply: 24 V DC from the rack

• Current Consumption: 90 mA at 24 V DC

• Weight: 0.2 kg

• Operating Temperature: 0 to 60 °C

• Relative Humidity: 10 to 95 % without condensation

• Protection: IP20
