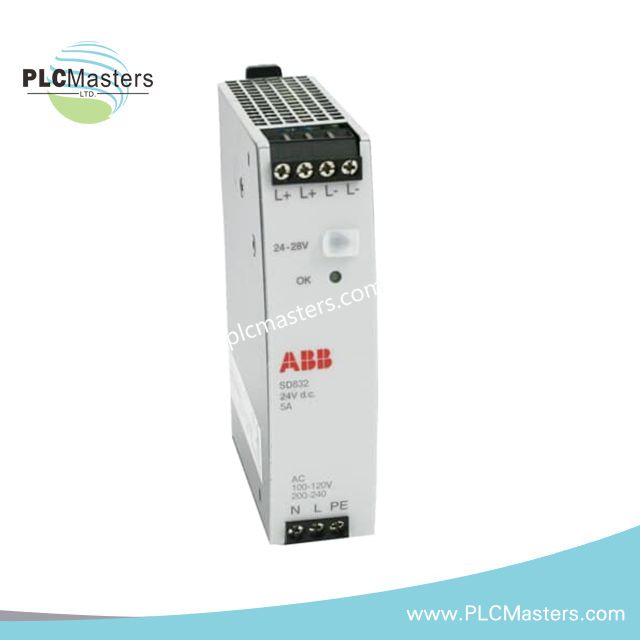

ABB SD832 3BSC610065R1 Power Supply

General Information

• Article Number: 3BSC610065R1

• Type: Power supply

• Rated Output Current: 5 A

• Rated Output Power: 120 W

• Rated Output Voltage: DC 24 V

• Rated Input Power: 240/283 VA

• Mains/Input Voltage (Nominal): 100–120 V AC / 200–240 V AC (Auto-select input)

• Applications: SELV and PELV

• Efficiency: 89.4 / 90.2 %

Detailed Data

• Mains Voltage Variation Allowed: 100–120 V AC ±10 %, 200–240 V AC ±10 %

• Mains Frequency: 50–60 Hz ±6 %

• Primary Peak Inrush Current at Power On: <10 A

• Load Sharing: Not available

• Supervision Relay: NO

• Power Factor (at Rated Output Power): 0.56 / 0.47

• Heat Dissipation: 14 / 13 W

• Output Voltage Regulation at Max. Current: <70 mV / <100 mV

• Ripple (Peak to Peak): <50 mV

• Secondary Voltage Hold-up Time at Mains Blackout: 80 / 78 ms

• Maximum Output Current: 6 A (at ambient temp <45 °C)

• Maximum Ambient Temperature: 55 °C

• Primary: Recommended External Fuse: 10–20 A

• Secondary: Short Circuit: 10–14 A

• Output Overvoltage Protection: <39 V

Environment and Certification

• CE Mark: Yes

• Electrical Safety: IEC 61131-2, UL 508, EN 50178

• ATEX Zone 2: No

• IECEx Zone 2: No

• Hazardous Location, Class 1 Div 2: No

• Marine Certification: ABS, BV, DNV-GL, LR

• Protection Rating: IP20 (IEC 60529)

• Corrosive Atmosphere: ISA-S71.04 G2

• Pollution Degree: Degree 2 (IEC 60664-1)

• Mechanical Operating Conditions: IEC 61131-2

• EMC: EN 61000-6-4 and EN 61000-6-2

• Overvoltage Categories: Category III (IEC/EN 60664-1)

• Equipment Class: Class 1 (EN 50718; 3.56)

Dimensions

• Width: 32 mm (1.26")

• Depth: 117 mm (4.61")

• Height: 124 mm (4.88")

• Weight: 500 g (1.1 lbs.)

• Mounting Spacing (W): 15 mm (0.59")

• Mounting Spacing (H): 40 mm (1.57")
