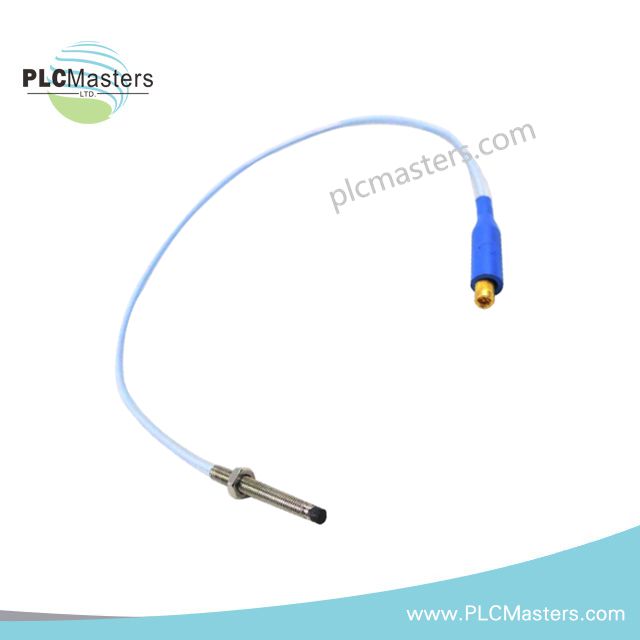

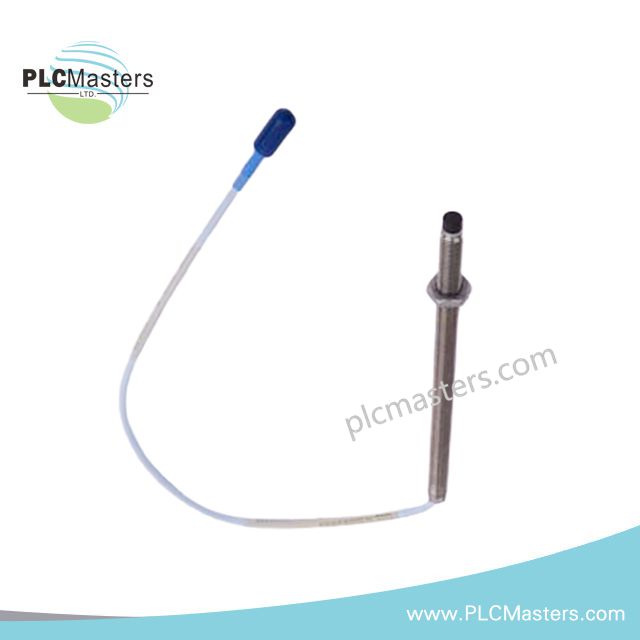

Bently Nevada 330905-00-18-05-02-05 11 mm Proximity Probe

Overview

The 3300 XL 11 mm Proximity Probe (330905‑00‑18‑05‑02‑05) from Bently Nevada (Baker Hughes) is a high-precision sensor designed for non-contact monitoring of vibration and shaft position in industrial rotating machinery. Integrated into the 3300 XL Proximity Transducer System, it delivers accurate measurements of dynamic vibration signals and static shaft positions, providing reliable data for machinery protection systems.

This model features an 11 mm probe tip, making it suitable for larger shaft diameters and bearing configurations. The probe operates using eddy-current technology, ensuring precise displacement readings over its specified linear range.

Key Features

• 11 mm probe tip for applications on large shafts and bearings

• Non-contact eddy-current measurement technology for accurate displacement

• Monitors vibration, shaft position, and Keyphasor® reference signals

• High linearity with ±0.25 mm typical accuracy

• Robust stainless steel housing designed for harsh environments

• Compatible with Bently Nevada 3300 Series machinery protection systems

• Cable length of 1.8 m (denoted by “18” in part number)

• Hazardous area certifications: ATEX, IECEx, CSA (depending on suffix)

Technical Specifications

General

Electrical / Performance

Mechanical

Environmental

Typical Applications

• Steam and gas turbines

• Compressors and pumps

• Electric motors and generators

• Industrial fans and gearboxes

FAQ

Q: Can this probe measure both static and dynamic signals?
A: Yes, it accurately monitors shaft position (static) and vibration (dynamic) using eddy-current technology.

Q: What does the “18” in the part number indicate?
A: It defines the probe cable length of 1.8 meters.

Q: Is this probe compatible with other Bently Nevada systems?
A: It is fully compatible with the 3300 Series machinery protection systems, including vibration and Keyphasor® monitoring modules.

Q: How does this probe differ from the 330903‑00‑21‑10‑02‑05 model?
A: The 330905 model features an 11 mm probe tip (larger than the 330903’s 8 mm), making it more suitable for larger shaft diameters and heavy-duty applications.
