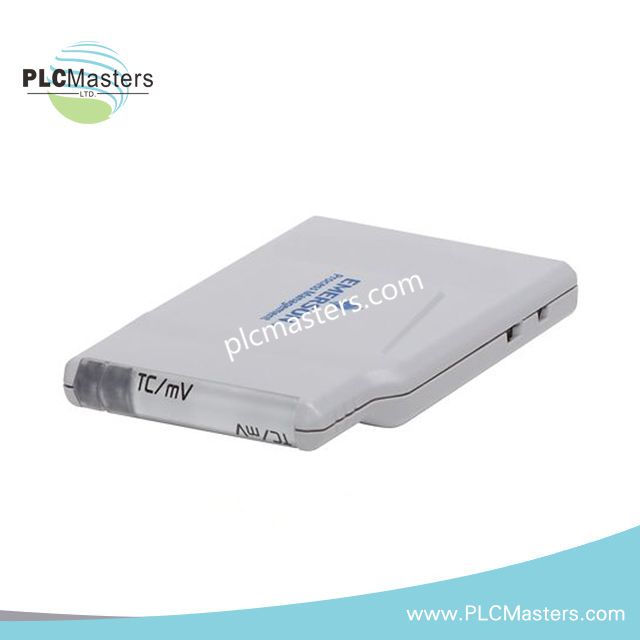

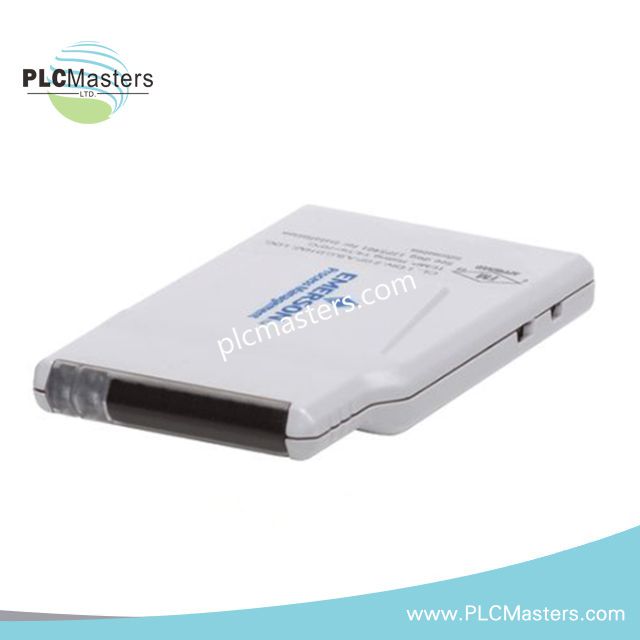

Emerson SE4303T02 DeltaV™ Thermocouple/mV CHARM

Overview

The Emerson SE4303T02 is a Thermocouple/mV CHARM for DeltaV™ Electronic Marshalling systems. It measures temperature and low-level voltage signals with high precision. The module supports thermocouples: J, K, T, E, R, S, B, and N types. It accepts low-level millivolt inputs up to ±100 mV. SE4303T02 ensures signal integrity with galvanic isolation and cold junction compensation. It installs easily into DeltaV™ CHARM I/O cards. Built-in diagnostics detect faults and validate signal quality. Ideal for chemical, power generation, and oil & gas applications.

Technical Specifications

• CHARM Type: Thermocouple / mV Input

• Input Signal: Thermocouples (J, K, T, E, R, S, B, N) and low-level millivolt signals

• Voltage Range: Typically ±100 mV

• Accuracy: High-resolution input for precise temperature readings

• Resolution: 24-bit A/D converter, dependent on sensor type

• Repeatability: 0.05% of span

• Calibration: Not required

• Isolation: Each sensor galvanically isolated; factory tested to 1000 V DC

• Common Mode Rejection: 90 dB (DC/50/60 Hz)

• CHARM Power Requirement: 22 mA max @ 24 V DC

• Cold Junction Compensation: Accuracy ±1.0°C; range -40 to 85°C

• Open Sensor Detection: Yes

• Heat Dissipation: 0.30 W

• Installation: Pluggable into CHARM I/O cards; DeltaV™ compatible

• Diagnostics: Built-in fault detection and signal validation

• Certifications: Meets industrial safety and performance standards
