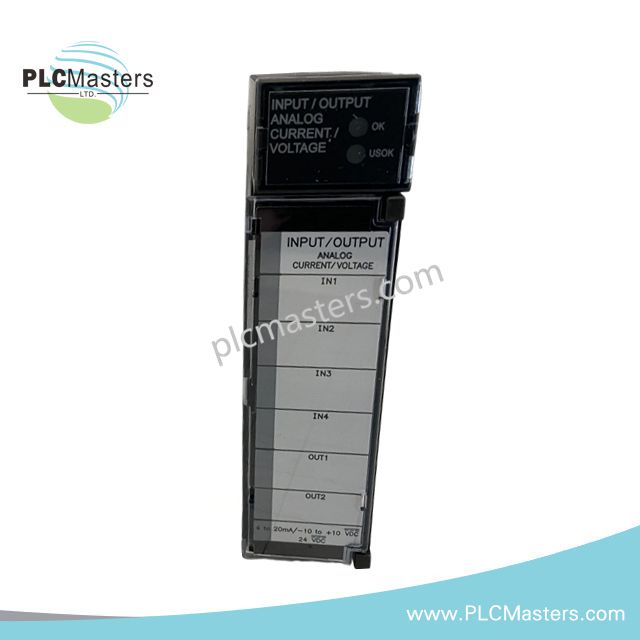

GE IC693ALG442C Analog Input/Output Module

Overview

The IC693ALG442C is a combination analog I/O module for GE Fanuc Series 90-30 PLCs. It provides 4 differential analog inputs and 2 single-ended analog outputs. This module supports both current and voltage signals, allowing flexible integration with sensors, transmitters, and actuators. Industrial users benefit from fast update rates, high resolution, and reliable diagnostics for accurate control. Its robust design ensures stable operation in harsh industrial environments.

Technical Specifications

• Module Type: Analog Input/Output Module

• Series: GE Fanuc Series 90-30

• Analog Inputs: 4 differential channels

• Analog Outputs: 2 single-ended channels

• Input Signal Ranges: ±10 V, 0–10 V, 0–20 mA, 4–20 mA (software-configurable)

• Output Signal Ranges: ±10 V, 0–10 V, 0–20 mA, 4–20 mA (software-configurable)

• Resolution: 12-bit (1 word per channel)

• Accuracy: ±0.25% for inputs; ±0.1% for outputs at 25°C

• Update Rate: Inputs ~8 ms, Outputs ~4 ms per channel

• Isolation: 1500 V RMS between field and logic; channel-to-channel and channel-to-backplane protection

• Diagnostics: Open-wire detection for current mode, fault alerts

• Power Requirements: 150 mA plus loop current from external 24 VDC supply

• Status Indicators: LEDs for module status and user power

• Mounting: Standard Series 90-30 I/O slot

• Operating Temperature: –40°C to +70°C

• Dimensions: 6.0 in x 6.0 in x 2.0 in (15.2 cm x 15.2 cm x 5.1 cm)

• Weight: 0.4 kg (13.0 oz)
