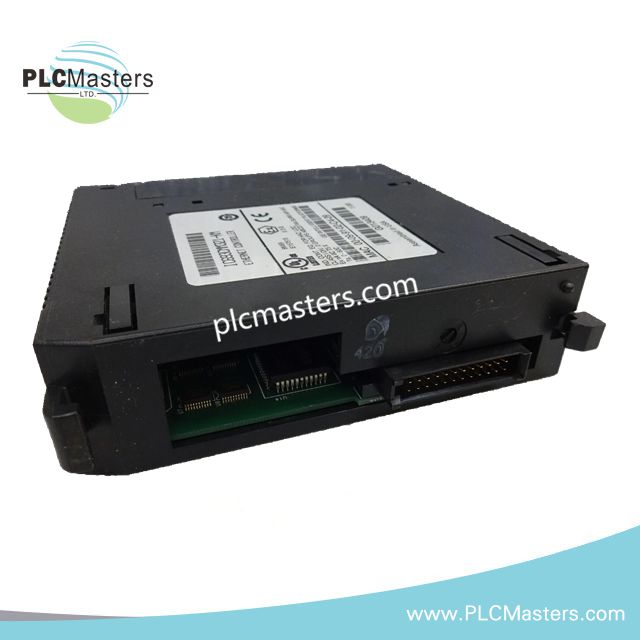

GE IC693CMM321 Ethernet Interface Module

Overview

The GE IC693CMM321 is a high-performance Ethernet interface module for Series 90-30 PLCs. It enables reliable communication between PLCs, HMIs, SCADA systems, and remote I/O units. This module supports industrial Ethernet integration and modern automation networks. It provides fast data transfer, versatile connectivity, and easy network management. The IC693CMM321 is essential for optimizing industrial control system performance.

Technical Specifications

• Model: IC693CMM321

• Manufacturer: GE Fanuc (General Electric)

• Function: Ethernet communications interface for Series 90-30 PLCs

• Power Supply: Supplied via PLC backplane, ≤ 5W power consumption

• Ports:

• 1 × AAUI Ethernet Port (requires external transceiver)

• 1 × RS-232 RJ-11 Serial Port (Station Manager)

• 1 × RS-485 15-pin D-type Port (Software Loader)

• Supported Protocols: TCP/IP, UDP, SRTP, Optional Modbus TCP/IP

• Max Connections: Supports up to 16 server connections

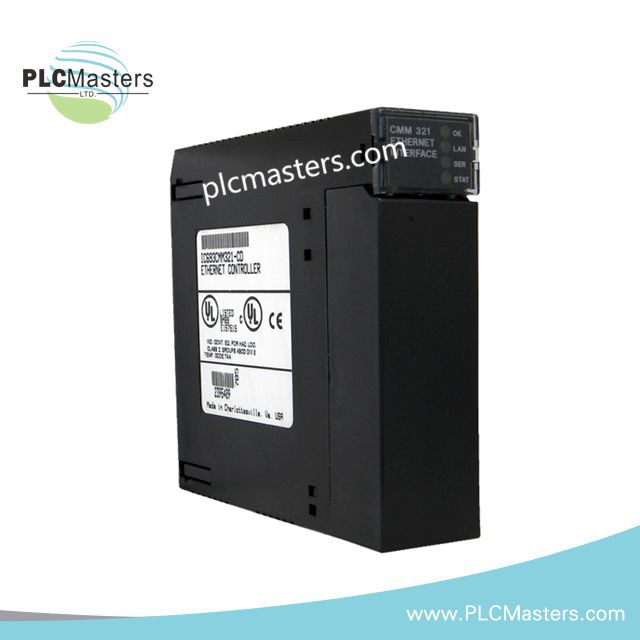

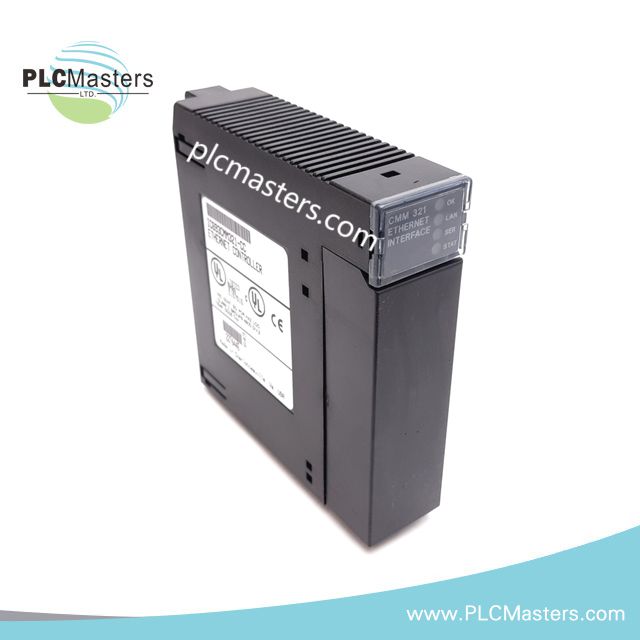

• Status Indicators: LED indicators for OK, LAN, SER, and STAT

• Dimensions: 175 mm × 100 mm × 60 mm

• Weight: 0.72 kg

• Mounting: Standard 35 mm DIN rail, horizontal or vertical layout

• Environmental Ratings:

• Operating Temperature: -20°C to +70°C

• Humidity: 5% to 95% RH, non-condensing

• Protection Class: IP20 (indoor use)

• Compatible CPU Versions: Full functionality on CPU v6.50 or higher; single SRTP connection on CPU v5.03–6.04

• Module Width: Single slot
