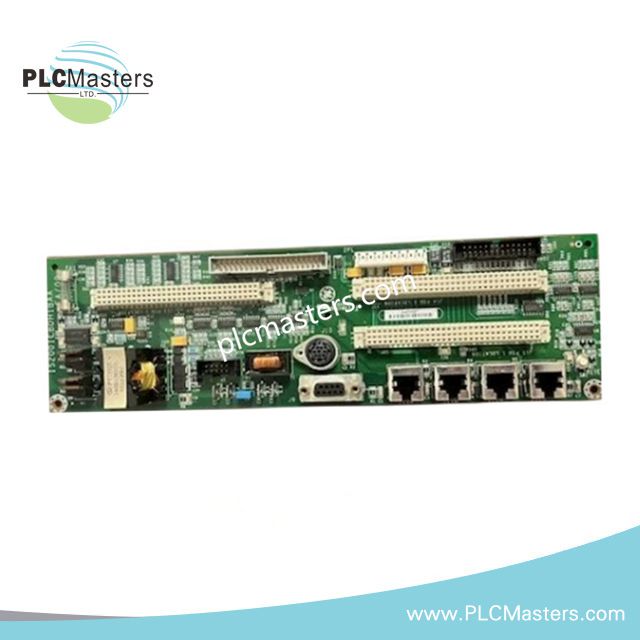

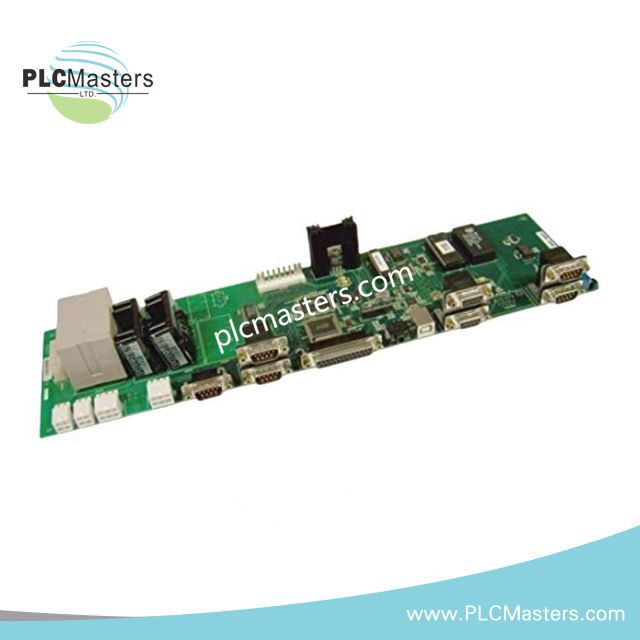

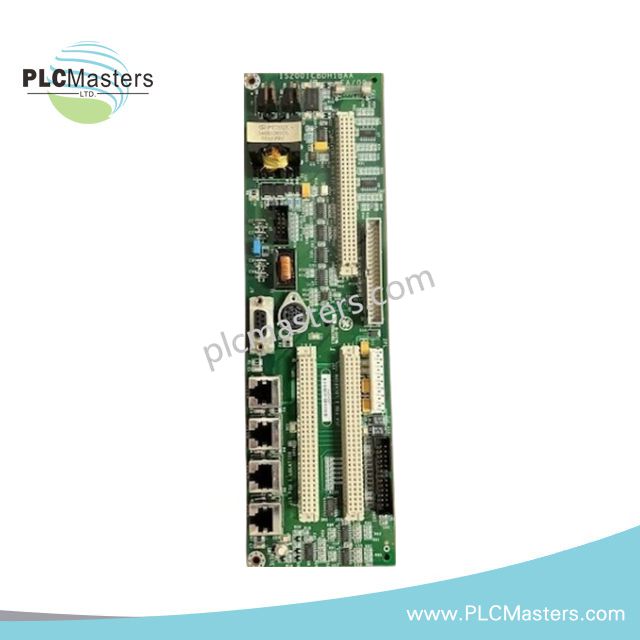

GE IS200ICBDH1ABA Innovation Series Control Board

Description

The GE IS200ICBDH1ABA is an Innovation Series Control Board engineered for demanding Mark VI turbine control applications. It delivers stable and accurate I/O processing that supports critical turbine monitoring functions. Moreover, the board integrates seamlessly into existing Mark VI racks, allowing operators to upgrade or replace modules without altering system architecture. Each channel is designed for precise signal acquisition, which ensures consistent performance across gas and steam turbine environments. Therefore, the IS200ICBDH1ABA strengthens system reliability where continuous operation is essential.

Key Features

The module supports both analog and digital field inputs, offering flexible integration for turbine sensors and auxiliary subsystems. In addition, its galvanic isolation design helps protect control electronics from field disturbances and electrical noise. Built-in diagnostics continuously monitor signal health, enabling fast troubleshooting during commissioning or routine service. The board uses GE’s modular assembly standard, which simplifies long-term maintenance. Furthermore, the hot-swappable construction reduces downtime during replacement tasks.

Technical Specifications

Product Type: Innovation Control Board
Part Number: IS200ICBDH1ABA
System Platform: GE Mark VI Turbine Control
Board Material: Multilayer FR-4 Industrial PCB
Signal Inputs: Multiple analog channels; multiple digital channels
Isolation: Galvanic isolation between field signals and control logic
Diagnostics: Real-time monitoring for signal integrity and fault detection
Dimensions: 270 × 190 × 30 mm
Weight: 0.45 kg
Operating Temp: –40 °C to +70 °C
Mounting: Rack-mounted within Mark VI chassis
Assembly Type: Normal Assembly
Revisions: 3 total
Compatibility: First two revisions backwards-compatible

Typical Applications

This board is widely used in utility and industrial turbine installations where stable I/O processing is required. For instance, it collects feedback from sensors, switches, and transducers that support fuel control, vibration monitoring, and thermal protection logic. Moreover, it enhances performance in both gas turbine and steam turbine automation platforms, especially where long service life and low maintenance costs are priorities.

Support & Maintenance

Operators appreciate the module’s diagnostic depth, which enables predictive maintenance and early fault visibility. In addition, replacement tasks require no rewiring because the board uses GE’s standardized backplane interfaces. This improves service efficiency and supports long-term operational stability. Therefore, the IS200ICBDH1ABA remains a trusted component for turbine control modernization projects.

FAQ

Q1: Is the IS200ICBDH1ABA compatible with all Mark VI systems?
Yes, it works across the Mark VI platform and supports backward compatibility for early revisions.

Q2: Does the board handle both analog and digital signals?
Yes, the module supports multiple analog and digital input channels for broad field integration.

Q3: Can the board be replaced without powering down the system?
In most installations, the hot-swappable design allows replacement with minimal system interruption.

Q4: What diagnostics features are included?
The board provides real-time monitoring for signal integrity, channel status, and fault detection.

Q5: What industries typically use this module?
It is primarily deployed in power generation facilities operating gas and steam turbines.
