Honeywell 05704-A-0148 5704F Fire Status Panel

Description

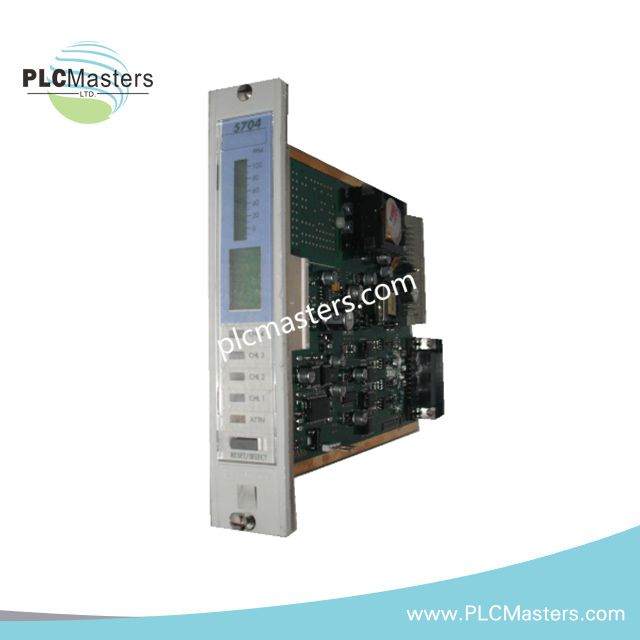

The Honeywell 05704-A-0148 5704F Fire Status Panel provides clear alarm visibility and direct operator control within Honeywell’s System 57 fire and gas detection platform. Engineers value its dependable performance because it consolidates fire, fault, and inhibit conditions into a single, easy-to-read interface. Moreover, the panel works closely with multiple 5704F Fire Control Cards, enabling efficient zone monitoring across distributed racks. Its design supports fast operator decisions during critical events and offers a familiar control layout used widely in industrial safety systems.

Key Features and Functional Highlights

• Centralized Status Display: Shows consolidated Fire, Fault, Inhibit, Silence, Walk Test, and Earth Leakage Fault conditions.

• Integrated Audible Sounder: Generates clear acoustic alerts for fire, fault, accepted fire, and accepted fault events.

• Direct Operator Controls: Includes Accept, Silence, Reset, and Lamp Test buttons for rapid response.

• Reliable Module Interaction: Works seamlessly with 5704F Fire Control Cards to streamline alarm management.

• Industrial Safety Proven: Offers consistent performance in industrial environments requiring dependable fire and gas monitoring.

• Efficient Walk Test Support: Provides dedicated functions to simplify periodic system testing.

Technical Specifications

Model Number: 05704-A-0148
Product Name: 5704F Fire Status Panel
System Compatibility: Honeywell System 57

Electrical & Performance

• Supply Voltage: 18–32 VDC

• Power Consumption: 0.75 W

• Audible Sounder: 60 dB at 1 m

Environmental Ratings

• Operating Temperature: –5°C to +55°C

• Storage Temperature: –25°C to +55°C

• Operating Humidity: 20–90% RH (non-condensing)

Mechanical

• Mounting: System 57 rack-mounted

• Weight: 0.5 kg

Indicators & Controls

• Status Lamps: Fire, Fault, Inhibit, Silence, Walk Test, Earth Leakage Fault

• User Controls: Accept, Silence, Reset, Lamp Test

Typical Applications

This module is widely used in refineries, chemical processing plants, power generation facilities, and offshore platforms. Moreover, it supports engineers who require centralized fire alarm status indication within distributed racks. Plant operators also rely on the panel for intuitive alarm recognition and rapid response execution.

Support & Maintenance

Routine inspection of lamps, buttons, and audible indicators ensures long-term reliability. In addition, the panel integrates easily into standard maintenance workflows used across Honeywell System 57 installations. Replacement follows simple rack-mount procedures, reducing downtime during servicing.

FAQ

Q1: Is the 05704-A-0148 compatible with all System 57 racks?
Yes, it is designed for any rack containing one or more 5704F Fire Control Cards.

Q2: Can the panel operate as a standalone fire controller?
No, it functions only as a status and control interface for 5704F cards.

Q3: Does the panel include an internal sounder?
Yes, it features an internal sounder providing 60 dB alerts at 1 meter.

Q4: What environmental limits should I consider?
The panel performs reliably from –5°C to +55°C with non-condensing humidity.

Q5: Is the panel suitable for outdoor installations?
No, it is intended for indoor industrial environments only.
