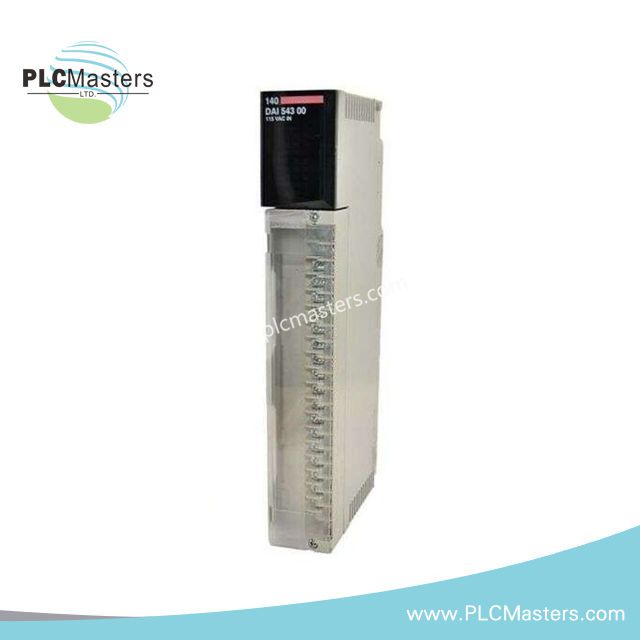

Schneider 140DAI54300 Discrete Input Module

Overview

The Schneider Modicon 140DAI54300 is a discrete input module designed for the Modicon Quantum platform. It processes signals at high speed and ensures efficient communication. Therefore, it delivers reliable operation in industrial automation systems.

Technical Specifications

• Product Type: Discrete Input Module

• Manufacturer: Schneider Electric

• Model Number: 140DAI54300

• Discrete Input Voltage: 115 V AC

• Number of Input Channels: 16

• Group of Channels: 2

• Input Current:

• 11.1 mA (57–63 Hz)

• 13.2 mA (47–53 Hz)

• Voltage State 1 Guaranteed:

• 79–132 V AC (57–63 Hz)

• 85–132 V AC (47–53 Hz)

• Voltage State 0 Guaranteed: 0–20 V AC (both frequency ranges)

• Input Impedance:

• 12,000 Ohm capacitive (57–63 Hz)

• 14,400 Ohm capacitive (47–53 Hz)

• Network Frequency Limits: 47–63 Hz

• Maximum Leakage Current: 2.1 mA

• Absolute Maximum Input:

• 132 V continuous

• 156 V for 10 seconds

• 200 V for 1 cycle

• Response Time:

• Off-On: 0.75–4.9 ms per line cycle

• On-Off: 7.3–12.3 ms

• Isolation Between Groups: 1780 Vrms for 1 minute

• Isolation Between Groups and Bus: 1780 Vrms for 1 minute

• Bus Current Requirement: 180 mA

• Maximum Power Dissipation: 5.5 W

• Operating Temperature: 0°C to 60°C

• Storage Temperature: -40°C to 85°C

• Relative Humidity: 95% non-condensing

• Operating Altitude: Up to 5000 m
