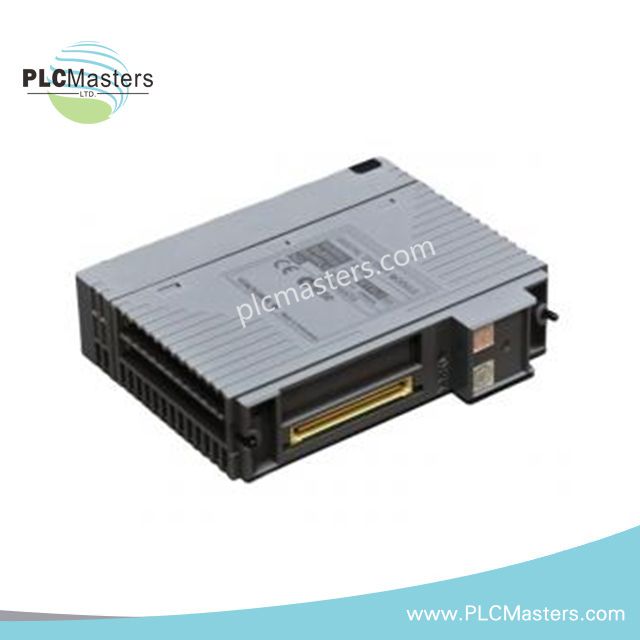

Yokogawa ADV169-P50 Digital Input Module

Overview

The Yokogawa ADV169-P50 is a high-density 64-channel digital input module designed for CENTUM VP and STARDOM control systems. It supports the ST6 architecture, ensuring seamless integration and consistent performance. This module accurately acquires digital signals from field devices like switches, sensors, and relays, making it ideal for large-scale industrial applications. Each group of 16 channels shares a common ground, which enhances signal stability and simplifies wiring in harsh environments.

Technical Specifications

General

• Model Number: ADV169-P50

• Type: Digital Input Module

• Architecture Compatibility: ST6-compatible

• Control Systems Supported: CENTUM VP, STARDOM

• Number of Input Channels: 64 independent digital inputs

• External Connection: KS9 dedicated signal cable

Input Signal Characteristics

• Contact Input (ON): ≤ 200 Ω

• Contact Input (OFF): ≥ 100 kΩ

• Voltage Input (ON): ±1 V DC, ≤ 200 Ω

• Voltage Input (OFF): 4.5–25 V DC

• Minimum Input Current: 1.25 mA (short circuit condition)

• Input Contact Rating: 5 V DC, ≥ 20 mA

• Input Response Time: 8 ms (status input)

• Push Button Input Function: Not supported

Electrical and Power

• Isolation: Common minus side every 16 channels

• Maximum Power Consumption: 800 mA @ 5 V DC

Environmental Conditions

• Ambient Temperature: 0°C to 50°C

• Ambient Humidity: 10% to 90% RH (non-condensing)

Physical Characteristics

• Dimensions: 20.5 cm × 48.2 cm × 22.1 cm

• Weight: 0.3 kg
