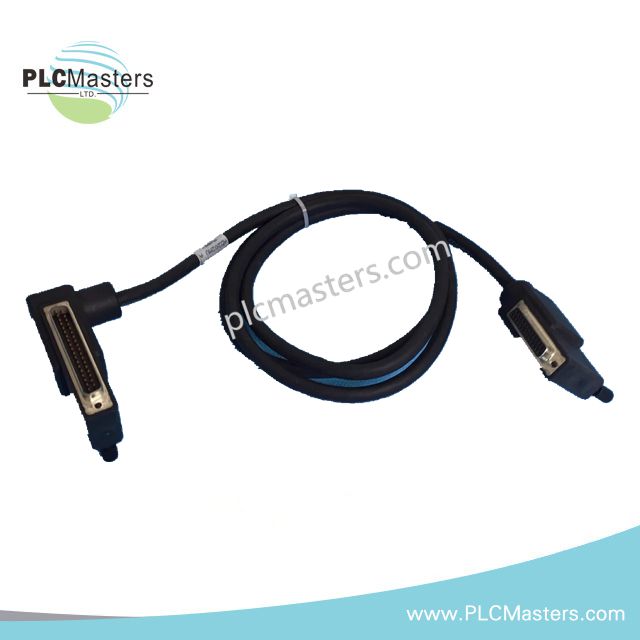

Foxboro AD202MU DIN FBM Cable

Product Description

The AD202MU DIN-FBM cable is a dedicated field wiring interface solution developed for Foxboro I/A Series systems. It is used to connect field termination assemblies (FTA) with the associated analog input module or Fieldbus Module (FBM), ensuring stable and organized signal transmission within distributed control architectures.

Designed for precision analog signal handling, this cable supports reliable transfer of low-level signals while minimizing electrical noise and interference. Its construction aligns with industrial control standards, making it suitable for continuous operation in process environments.

The AD202MU cable plays a critical role in maintaining signal integrity between instrumentation and control hardware, particularly in systems where measurement accuracy and wiring reliability are essential.

Key Technical Specifications

General Characteristics

• Model: AD202MU

• Cable Type: DIN-FBM field termination cable

• System Compatibility: Foxboro I/A Series DCS

• Associated Module: AD202MU analog input module

• Application Role: Interface between FTA and FBM or I/O module

Signal Transmission Capability

• Analog Current Signals: 4–20 mA

• Analog Voltage Signals: 0–10 V

• Temperature Inputs:

• Thermocouples (J, K, T, E)

• RTD sensors

• Auxiliary Signals: Dependent on FBM configuration

• Shielding: Industrial-grade shielding for noise suppression

• Signal Integrity: Designed for low signal loss and high accuracy transmission

Mechanical & Installation

• Termination Style: DIN-FBM Type 1 interface

• Connection Method: Pre-configured cable for direct plug-in between FTA and module

• Installation: Supports structured cabinet wiring layouts

• Use Case: Separation of field wiring from control electronics for easier maintenance

Environmental Considerations

• Operating Temperature Range: typically –20°C to +60°C (aligned with system modules)

• Humidity: 5% to 95% non-condensing

• Designed for use in industrial control panels and protected field enclosures

• EMI Resistance: Suitable for electrically noisy environments

Commercial & Supply Information

• Condition: New, typically supplied in original packaging

• Availability: Commonly stocked by industrial automation suppliers

• Manufacturing Origin: Typically listed as USA

Application Scenarios

The AD202MU cable is widely applied in systems where accurate analog signal transmission is required:

• Process industries such as oil & gas and petrochemical plants

• Power generation and energy systems

• Water and wastewater treatment facilities

• Chemical processing plants

• Large-scale distributed control systems with structured field wiring

FAQ

Q: What is the primary function of this cable?
A: It provides a reliable electrical connection between field termination assemblies and the AD202MU input module or associated FBM.

Q: Does this cable affect signal accuracy?
A: Yes, it is specifically designed with shielding and proper termination to maintain signal quality and reduce interference.

Q: Is this cable interchangeable with other FBM cables?
A: It is recommended to use the specified cable for the AD202MU module to ensure compatibility and correct pin configuration.

Q: Can it be used in harsh industrial environments?
A: Yes, when installed within appropriate enclosures, it supports operation in typical industrial temperature and humidity ranges.
