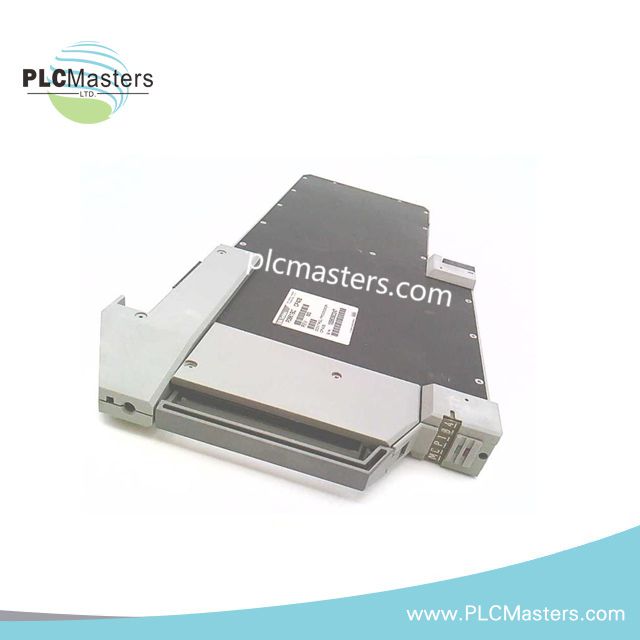

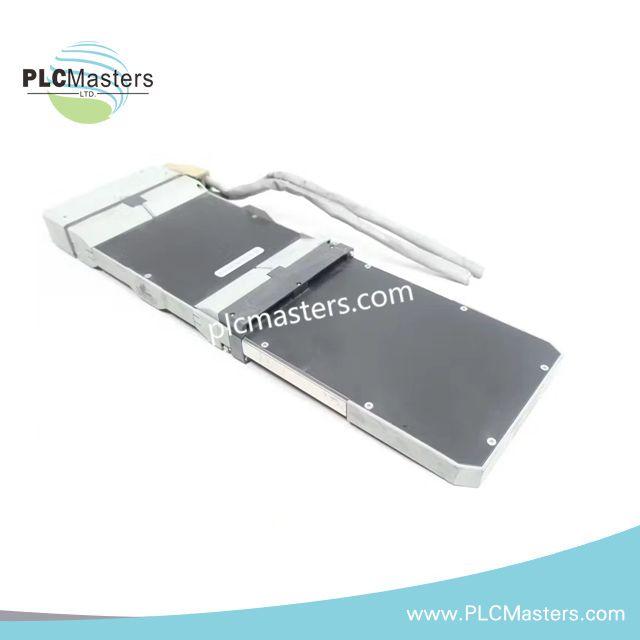

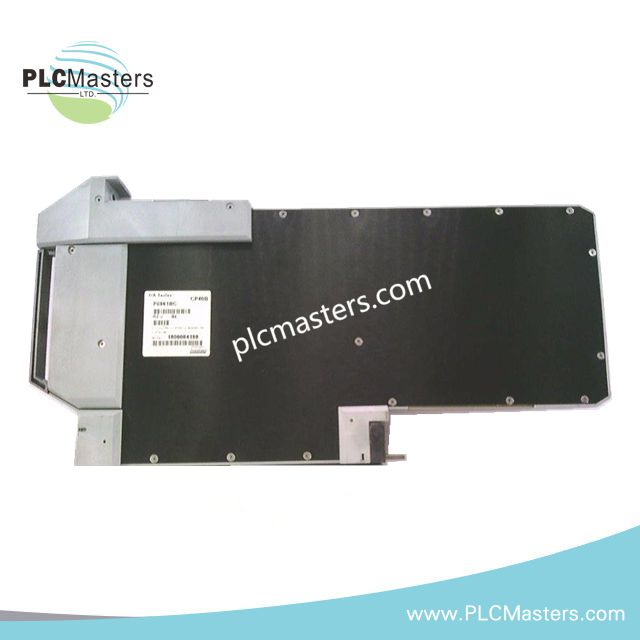

Foxboro P0961BC CP40B I/A Series Control Processor Module

Product Description

The P0961BC (CP40B) control processor is a core computing module within the Foxboro I/A Series distributed control system. It is responsible for executing real-time control strategies, coordinating communication between field devices and system nodes, and maintaining stable operation across distributed architectures.

Built for continuous-duty industrial environments, this processor combines deterministic execution with robust diagnostics and flexible communication support. Its architecture enables efficient handling of both regulatory and advanced control loops, making it suitable for high-availability systems.

The P0961BC is typically deployed in applications where system reliability, environmental durability, and consistent processing performance are critical.

Key Technical Specifications

Processing Core

• Processor Architecture: CP40B high-speed control processor

• Performance: up to 40 MIPS

• Primary Role: Real-time control execution and system coordination within I/A Series DCS

Memory Configuration

• RAM: 128 KB (control execution and runtime data)

• Non-volatile Storage: approx. 64 KB Flash (firmware and configuration storage)

• Memory design optimized for deterministic scan cycles and fast task switching

I/O & Communication

• Local I/O Capability:

• 8 digital inputs

• 8 digital outputs

• Supported Protocols:

• Modbus

• DeviceNet

• CANopen

• Additional Interfaces (system-dependent):

• Ethernet (via system modules)

• RS-485 serial communication

• CANbus integration

• Designed to interface with Foxboro Fieldbus Modules (FBMs) and operator workstations

Electrical Characteristics

• Supply Voltage: 24 V DC

• Typical Power Consumption: ≤ 5 W

• Designed for low power dissipation in enclosed control cabinets

Environmental Specifications

• Protection Rating: IP67 (suitable for harsh industrial conditions)

• Operating Temperature Range: –40°C to +70°C

• Storage Temperature: aligned with industrial-grade standards

• Relative Humidity: 5% to 95% (non-condensing)

Mechanical Details

• Mounting Options: DIN rail or panel installation

• Weight: 2.55 lbs

• Compact industrial form factor for cabinet integration

Application Scenarios

The P0961BC (CP40B) is commonly used in:

• Distributed control systems in chemical and petrochemical plants

• Power generation and energy management systems

• Oil & gas production and refining operations

• Continuous and batch process manufacturing

• Large-scale automation systems requiring high reliability and uptime

FAQ

Q: What is the main function of this module within the system?
A: It acts as the central processor, executing control logic, managing I/O data exchange, and coordinating communication across the Foxboro I/A Series DCS.

Q: Can this processor operate in harsh environments?
A: Yes, with an IP67 rating and wide temperature range, it is designed for demanding industrial conditions.

Q: Does the module support Ethernet communication directly?
A: Ethernet connectivity is typically implemented through system-level communication modules rather than directly on the processor.

Q: How does this model compare to newer Foxboro processors?
A: The CP40B focuses on stable, deterministic control and legacy system compatibility, while newer processors may offer higher memory capacity and integrated Ethernet features.
