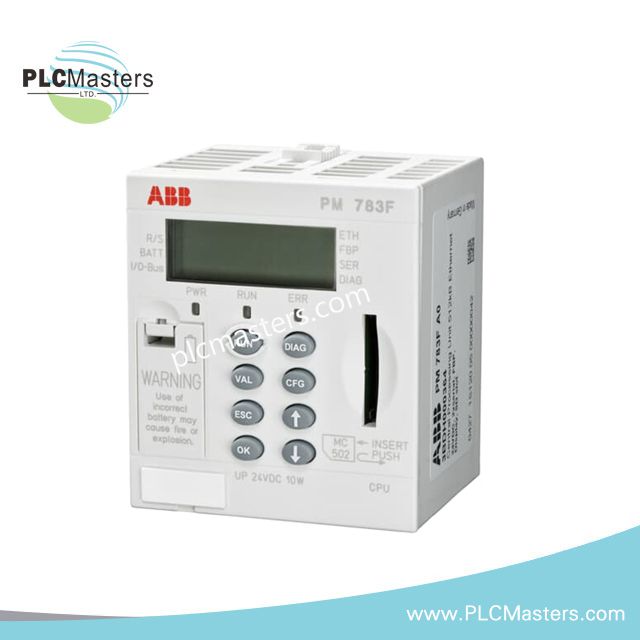

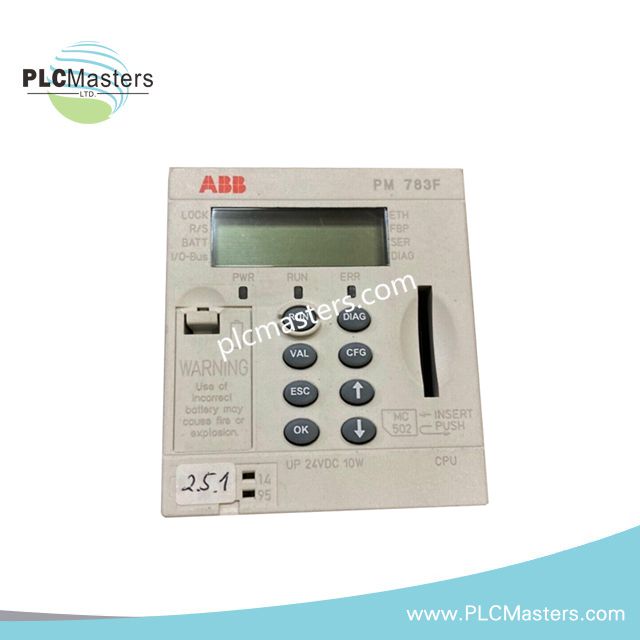

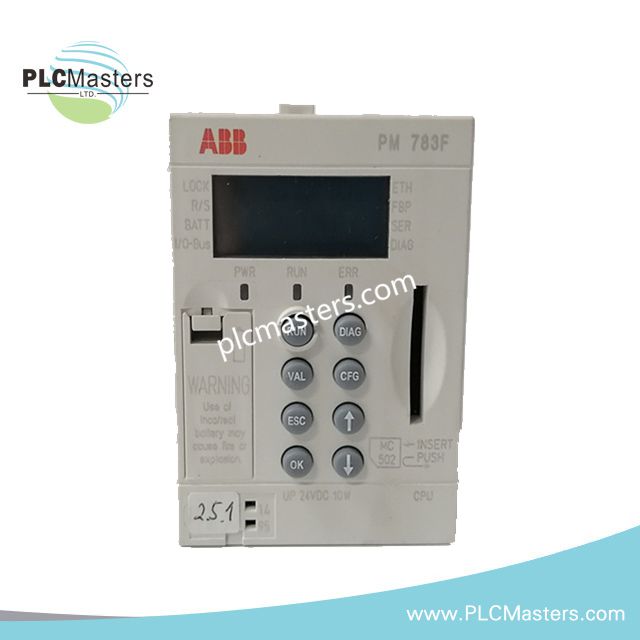

ABB PM 783F 3BDH000364R0005 CPU Module

ABB PM 783F — General Information

Article Number: 3BDH000364R0005
Life Cycle Status: Active
Redundancy: No
Clock Frequency: 96 MHz
Performance (1000 Boolean Operations): 0.71 ms
Memory: 10 MB
RAM Available for Application: 2 MB

Detailed Data

Processor & System

• Processor Type: PowerQUICC

• Switch-over Time in Redundant Configuration: N/A

• Number of Tasks per Controller: 9

Power

• Power Supply: 24 V DC

• Power Consumption (typ./max): 24 W

• Power Dissipation: 10 W

• Built-in Backup Battery: Lithium battery (TA 521F)

Communication & Interfaces

• Clock Synchronization: Yes

• Ethernet Channels: 1

• Ethernet Interface:

• Ethernet (IEEE 802.3)

• 100/10 Mbit/s

• RJ-45, female (8-pole)

• RS-232C Interface: 2

• 1 general-purpose

• 1 service tool port

Environment & Certification

Environmental Conditions

• Operating Temperature: 0°C … +60°C

• Storage Temperature: –20°C … +75°C

• Corrosion Protection: G3 compliant (ISA 71.04)

• Relative Humidity: Max. 95%, non-condensing

• Vibration: 1 g, 2 Hz … 150 Hz

• Protection Class: IP20

• Altitude: < 2000 m

• Environmental Classification: Industrial

Compliance

• Emission & Immunity: EN 61000-6-4, EN 61000-6-2

• Electrical Safety:

• EN 50178

• IEC 61131-2

• UL 61010-1

• UL 61010-2-201

• Hazardous Location: cULus Class 1 Div 2

• Marine Certificates: DNV

• CE Mark: Yes

• RoHS Compliance: Directive 2011/65/EU, (EU) 2015/863

• WEEE Compliance: Directive 2012/19/EU

Dimensions

• Width: 67.5 mm

• Height: 76 mm

• Depth: 54 mm

• Weight (incl. base): 0.4 kg
