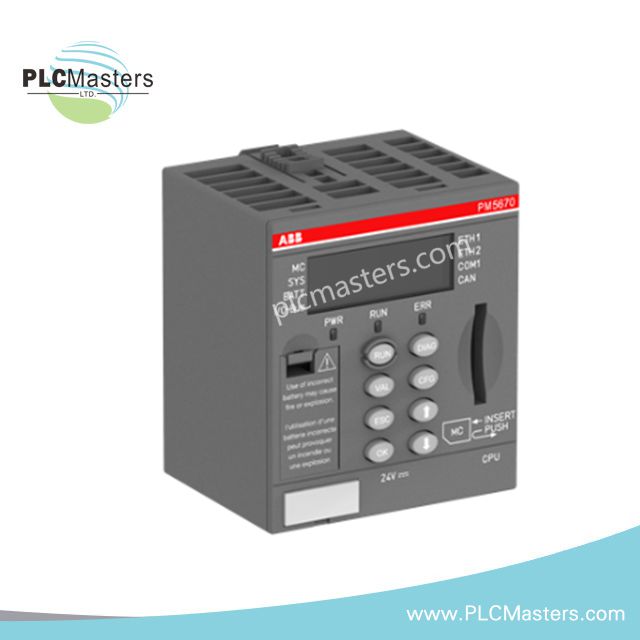

ABB PM5670-2ETH 1SAP151000R0278 Processor Module

General Information

• Product ID: 1SAP151000R0278

• ABB Type Designation: PM5670-2ETH

• Extended Product Type: PM5670-2ETH

• EAN: 4013614509032

• Catalog Description: Processor module with 160MB memory and multiple interfaces including 2 Ethernet ports, RS232/485, CAN, and an integrated display.

• Invoice Description: Processor module. Memory 160MB. Interfaces: 2 Ethernet, RS232/485, CAN. Display (PM5670-2ETH)

• Made To Order: No

• Minimum Order Quantity: 1 piece

• Order Multiple: 1 piece

• Replacement Product ID (New): 1SAP151000R0378

Technical Specifications

• Memory Size: 160 MB (RAM, user data)

• Processing Time: 0.000002 ms (ultra-fast CPU cycle)

• Interfaces:

• Industrial Ethernet: 2 ports

• Serial Communication: RS232/485 and CAN bus

• Digital I/Os: 0 (no configurable digital inputs/outputs)

• Degree of Protection: IP20 (protection against solid objects >12 mm, no water protection)

• Rated Supply Voltage: 24 V DC

• Supply Voltage Range: 20.4 to 28.8 V DC

• Display: Integrated display for local status and diagnostics

Physical Dimensions & Weight

• Net Weight: 0.133 kg

• Gross Weight (packaged): 0.152 kg

• Net Dimensions:

• Depth/Length: 62 mm

• Height: 76 mm

• Width: 67.5 mm

Certifications & Compliance

• CE Declaration of Conformity: Complies with EU & UK standards for AC500 V3 CPUs + terminal bases

• REACH Compliance: Contains substances >0.1% mass (Declaration date: 2024-12-06)

• RoHS Compliance: Complies with EU Directive 2011/65/EU and amendment 2015/863 (Date: 2017)

Additional Details

• Functionality: Designed as a high-performance processor module for ABB AC500 PLC systems.

• Product Main Type: PM5670

• Product Name: Distributed Automation PLCs
