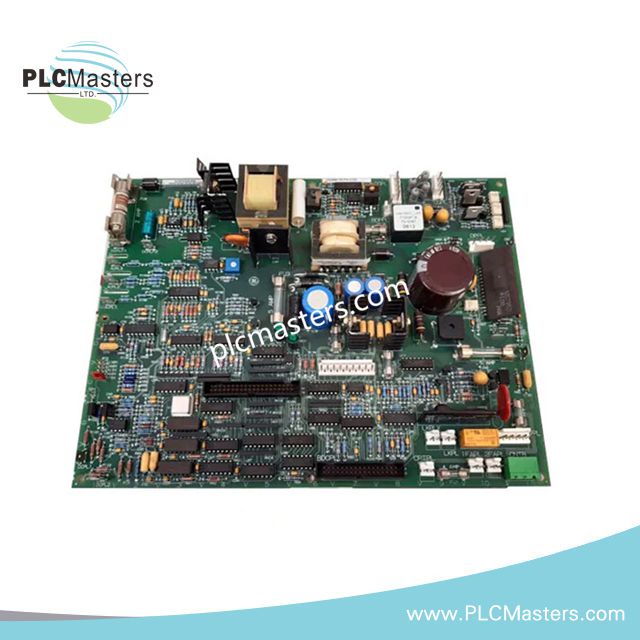

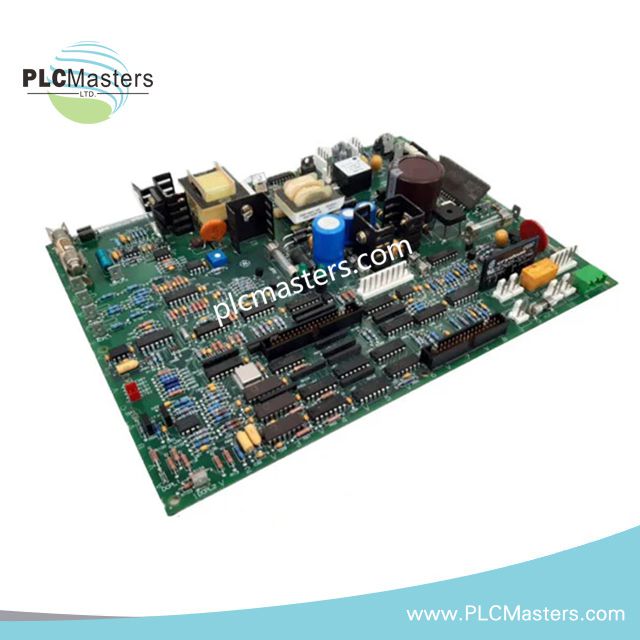

GE DS200IMCPG1CCB I/O Power Supply Interface Module

Overview

The DS200IMCPG1CCB is a high-performance IGBT power supply and I/O interface module from GE’s Mark V Speedtronic series. It converts incoming AC power into stable DC output for turbine control electronics and provides a reliable interface between the power supply and I/O modules, ensuring continuous and stable operation of the control system.

Key Features

• Converts 100–240V AC input into regulated DC output (5V, 12V, 24V DC).

• Distributes safe and stable DC power to control boards and I/O modules.

• Integrated fuses provide overcurrent protection.

• Backward compatible with earlier Mark V revisions.

• Optional advanced version includes Pentium M processor, 1.5GB DDR SDRAM, and dual Gigabit Ethernet for high-performance applications.

Technical Specifications

Applications

• Gas turbine control: Provides stable power for combustion regulation and speed control.

• Steam turbine control: Powers monitoring and automation boards reliably.

• Power plant turbine generators: Ensures high availability of control systems.

• Industrial automation: Acts as a key power and interface module for Mark V control platforms.

FAQ

Q1: What AC voltage input does DS200IMCPG1CCB support?
A: Standard versions support 100–240V AC, depending on configuration.

Q2: Is this module compatible with older Mark V series revisions?
A: Yes, it is backward compatible with the first two Mark V revisions.

Q3: Does it have an advanced computing version?
A: Yes, the optional advanced version includes a Pentium M processor, 1.5GB DDR SDRAM, and dual Gigabit Ethernet for high-performance turbine control.
