GE IC694MDL930 IC694MDL930A IC694MDL930CA Relay Output Module

Product Overview

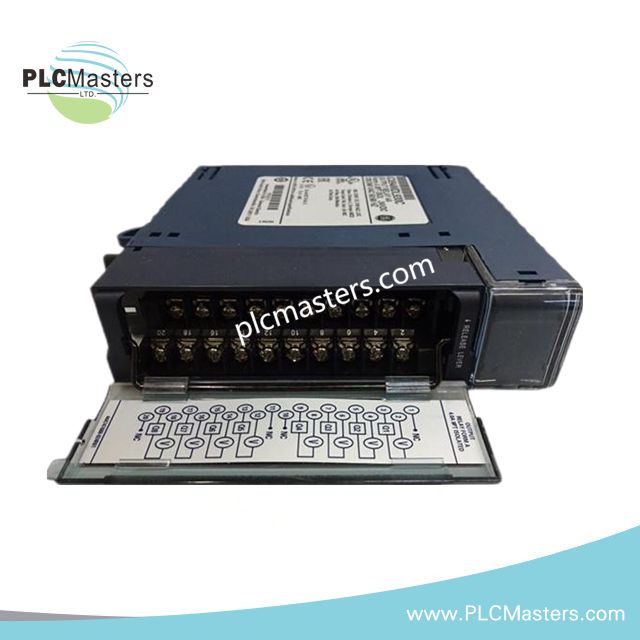

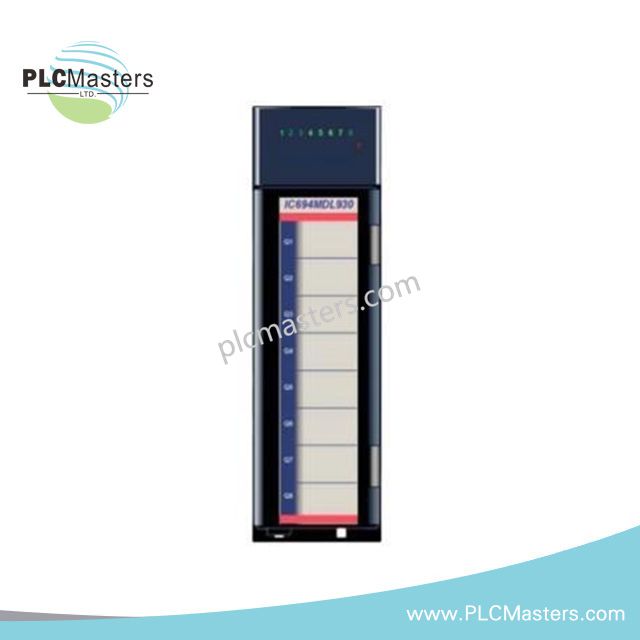

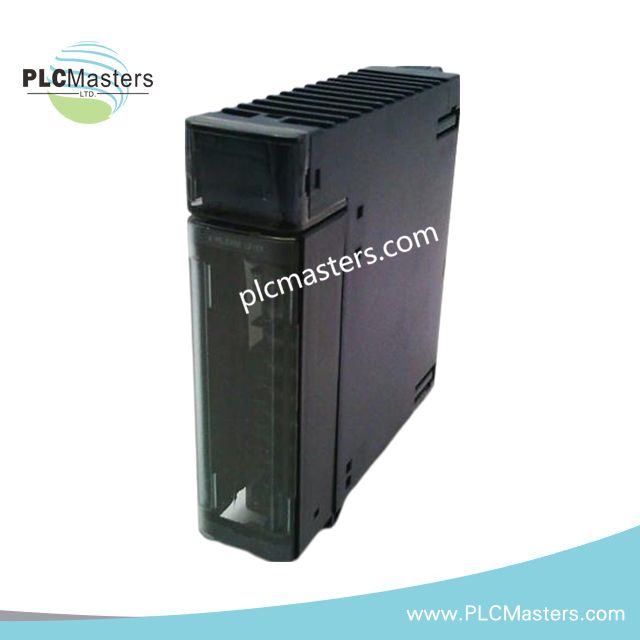

The GE IC694MDL930 is an 8-point isolated relay output module for PACSystems RX3i, designed for robust industrial automation. It offers individually isolated channels, allowing flexible wiring and enhanced operator safety. Moreover, each relay output supports both AC and DC loads, making it ideal for a wide range of control applications. This module provides reliable switching performance and seamless integration with PACSystems RX3i or Series 90-30 PLC platforms.

Key Features

• Eight normally open (N.O.) relay outputs with individual isolation for safety and flexibility

• Supports AC voltages from 5 to 250 V and DC voltages from 5 to 30 V

• Maximum load current of 4 A per output, suitable for solenoids, motors, and lights

• Fast response time: turn ON/OFF ≤ 10 milliseconds

• Individual LED status indicators for clear channel monitoring

• Compact design: 34 mm × 145 mm × 140 mm, mounts on RX3i rack or DIN rail

• Galvanic isolation between each channel and backplane reduces interference risks

Technical Specifications

Typical Applications

• Industrial automation for solenoid valves, lighting, and small motors

• Process control systems requiring channel isolation and high-current switching

• Discrete device control in manufacturing and material handling environments

• Retrofitting legacy Series 90-30 systems into modern RX3i platforms

FAQ

Q: Can the IC694MDL930 handle both AC and DC loads?
A: Yes, it supports 5–250 VAC and 5–30 VDC per output point.

Q: How many channels are individually isolated?
A: All 8 output channels are electrically isolated with separate commons.

Q: What is the maximum current per relay?
A: Each relay can handle up to 4 A resistive load and 2 A pilot duty.

Q: Can it mount on DIN rails?
A: Yes, the module supports both RX3i rack and DIN rail mounting.

Q: Which CPUs are compatible?
A: PACSystems RX3i and Series 90-30 PLCs are fully supported.
