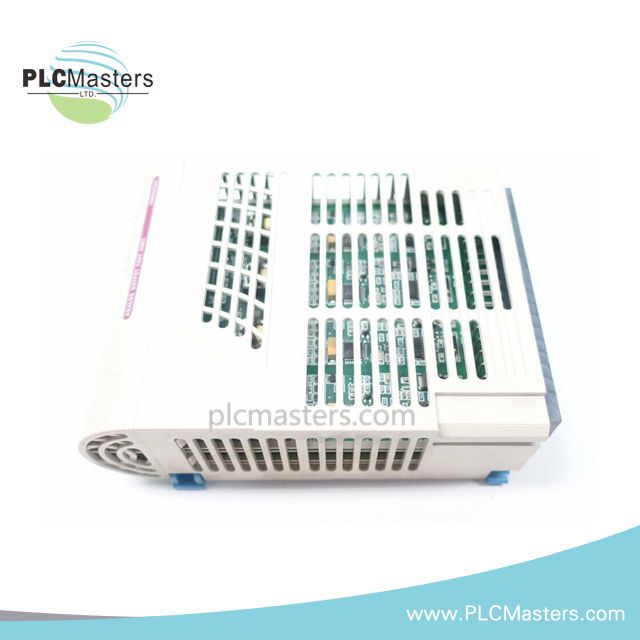

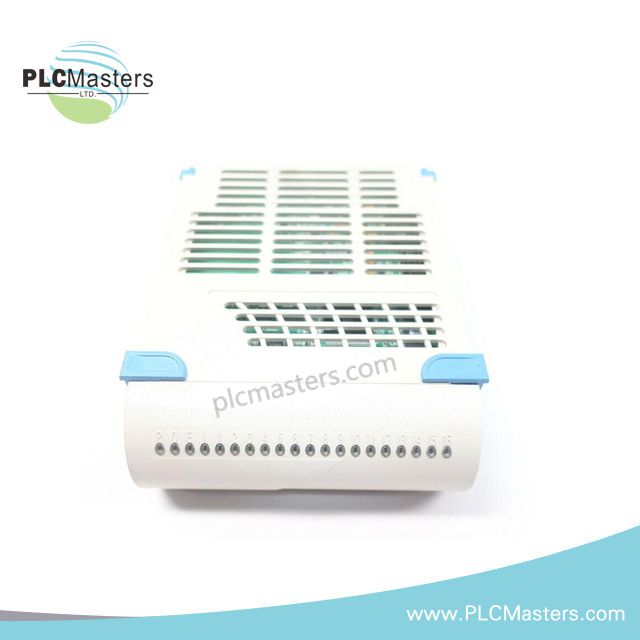

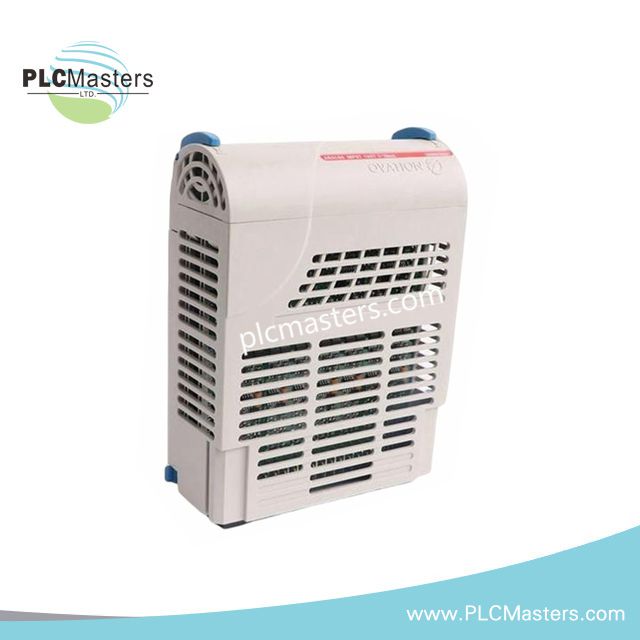

Ovation 1X00569H01 I/O Interface Module

Overview

The Emerson 1X00569H01 is a modular I/O interface module for Ovation™ DCS. It connects field signals directly with the controller. The module supports analog and digital signals, providing flexible configuration for industrial automation needs. Engineers use it to link sensors, actuators, and control units in demanding environments. It ensures reliable operation, hot-swappable installation, and streamlined software-based configuration.

Technical Specifications

• Module Type: I/O interface module with electronic and personality module support

• Signal Support: Analog input/output, digital input/output, RTD, pulse accumulator, HART, FOUNDATION Fieldbus, Profibus, DeviceNet, Ethernet, serial links

• Hot-Swappable: Insert or remove without interrupting system power or using tools

• Software Configurable: Configuration completed via Ovation software, no jumpers required

• Redundancy Support: Supports paired modules for fault-tolerant operation

• Power Supply: 5 VDC from Ovation chassis

• Power Consumption: Low power design for energy efficiency

• Isolation: Galvanic isolation between field signals and system bus

• Mounting: DIN rail or base unit with single-point fastening

• Housing: High-impact plastic enclosure protects internal backplane

• Operating Temperature: –40°C to +70°C

• Humidity: 5% to 95% RH, non-condensing

• Shock Resistance: 10 g, 11 ms half-sine wave

• Vibration Resistance: 5–16 Hz at 1 mm displacement, 16–150 Hz at 0.5 g acceleration
