ABB RF523 3BSE006802R1 18-Slot Control Subrack

Product Overview

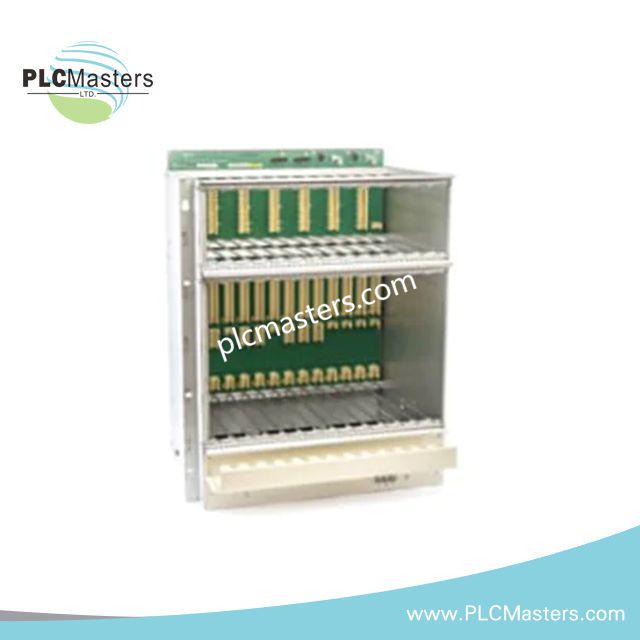

The RF523 (3BSE006802R1) is an 18-slot control subrack developed as part of ABB’s AC400 mechanical assembly range. It serves as the physical and electrical carrier for controller, communication, and I/O modules used in Advant OCS AC460 and MOD300 control platforms.
The subrack integrates a BB512 backplane, enabling consistent signal distribution and reliable DC power delivery across all installed modules. Its mechanical design supports front access installation, making it suitable for control cabinets where serviceability and long operational life are critical.

Mechanical and Electrical Design

The RF523 subrack provides a rigid aluminum frame with precision slot alignment to ensure secure module seating and long-term connector stability. The integrated BB512 backplane is factory-installed, eliminating the need for separate internal wiring and reducing installation errors.
Designed for continuous operation in industrial environments, the subrack supports wide temperature tolerance and high humidity resistance without condensation.

Technical Specifications

• Model: RF523 (3BSE006802R1)

• Product Type: Control Subrack

• Slot Capacity: 18 system units (18SU)

• Backplane Type: BB512 integrated backplane

• Compatible Systems: Advant OCS AC460, MOD300

• Mounting Method: Front-mounted, cabinet installation

• Supply Voltage: 24 V DC

• Operating Temperature Range: −20 °C to +60 °C

• Permissible Humidity: 5–95%, non-condensing

• Dimensions: 499 × 495 × 360 mm

• Weight: 19.1 kg

Key Functional Characteristics

• Supports up to 18 control, I/O, or communication modules

• Integrated BB512 backplane for stable power and signal routing

• Mechanical robustness for vibration-prone industrial cabinets

• Thermal stability suitable for continuous process control systems

• Front-access architecture simplifies installation and maintenance

Typical Application Areas

The RF523 subrack is commonly deployed in:

• Power generation and distribution control systems

• Oil, gas, and petrochemical process automation

• Pulp and paper production lines

• Legacy MOD300 and Advant OCS system expansions or refurbishments

Compatibility Notes

This subrack is designed specifically for AC460 and MOD300 architectures and is not interchangeable with AC800M or S800 I/O rack systems. Module compatibility should be verified against the BB512 backplane specification prior to installation.

Frequently Asked Questions

Q: Does the RF523 include the backplane by default?
A: Yes. The BB512 backplane is integrated and supplied as part of the subrack assembly.

Q: Can this subrack be rear-mounted?
A: No. The RF523 is designed for front mounting to support MOD300 cabinet layouts and service access.

Q: Is the RF523 suitable for new installations?
A: It is typically used for system expansions, spare parts, or modernization of existing Advant OCS and MOD300 installations.
