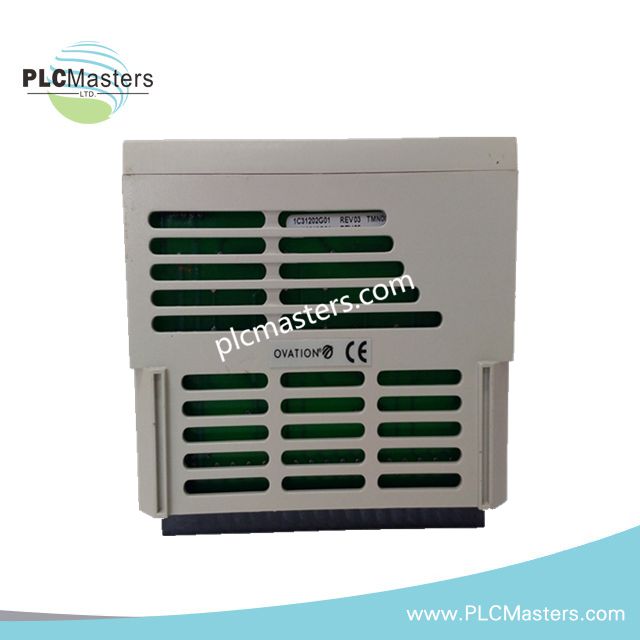

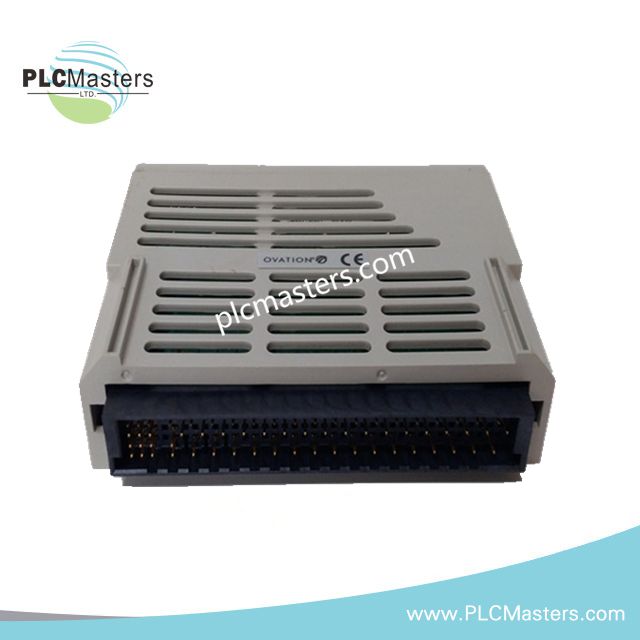

Ovation 1C31201G01 Servo Driver Personality Module

Overview

The Emerson Ovation 1C31201G01 is a high-performance servo driver personality module. It delivers precise analog output control for servo systems and industrial devices. Engineers use this module in motion control, process automation, and energy system applications. It ensures accurate signal modulation with reliable communication and fault diagnostics.

Technical Specifications

• Module Type: Servo driver personality module

• Function: Converts digital control signals into analog outputs

• Applications: Motion control, process automation, and energy systems

• Output Voltage Range: ±10 VDC

• Output Current Range: 0–20 mA or 4–20 mA

• Input Voltage: Nominal 24 VDC

• Power Consumption: Maximum 10 W

• Resolution: 12-bit or higher, depending on configuration

• Signal Type: Analog voltage or current

• Isolation: Galvanic isolation between I/O and system bus

• Control Algorithms: Customizable for specific loads

• Communication Interfaces: Ethernet, RS-232, RS-485, optional CAN bus

• Programming Options: Configurable with Ovation software tools

• Diagnostics: Built-in fault detection and status monitoring

• Dimensions: 208 × 157 × 43 mm

• Weight: 0.64 kg

• Mounting: DIN rail or rack-mounted

• Operating Temperature: 0°C to +60°C

• Storage Temperature: –40°C to +85°C

• Humidity: 5% to 95% RH, non-condensing

• Shock Resistance: 10 g, 11 ms half-sine wave

• Vibration Resistance: 5–16 Hz at 1 mm, 16–150 Hz at 0.5 g
