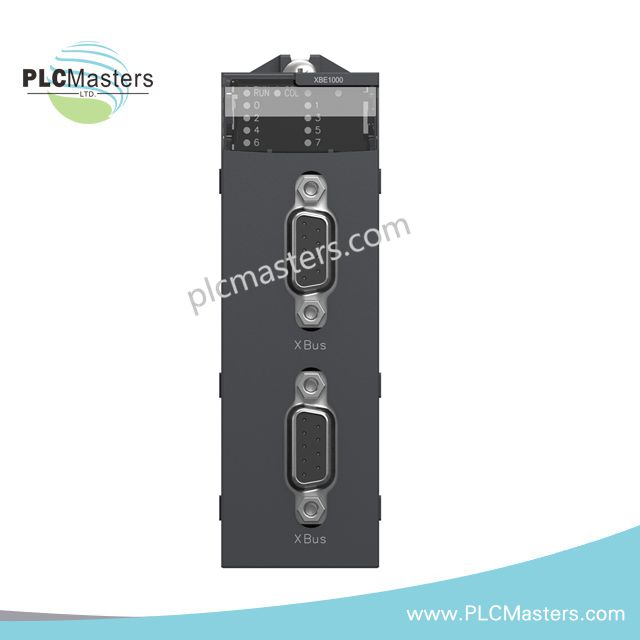

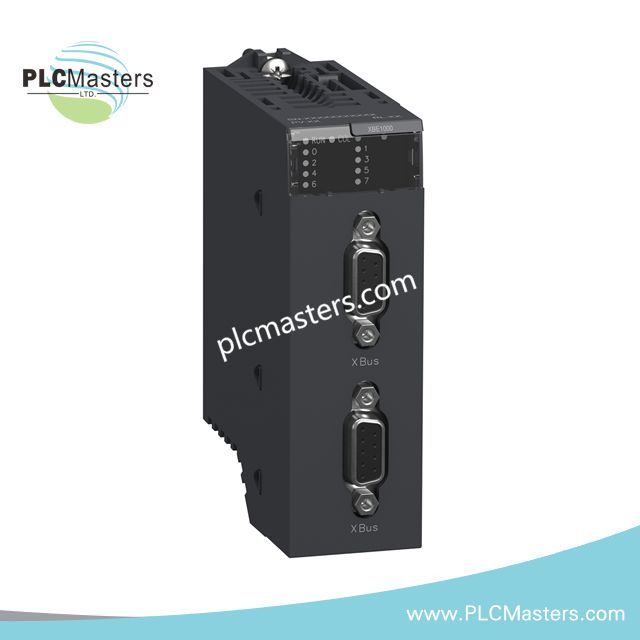

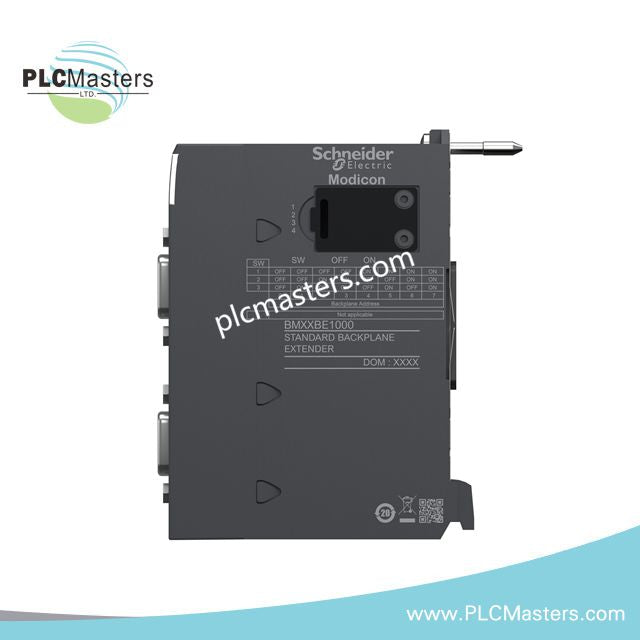

Schneider BMXXBE1000 Backplane Expander Module

Overview

The Schneider BMXXBE1000 is a backplane expander module for Modicon M340 automation systems. It connects multiple racks, enabling multi-rack configurations without occupying a slot. The module transmits local bus signals, ensuring seamless communication between connected racks. It mounts on the far-right side of the rack for easy installation. Designed for industrial environments, it supports medium to large process applications. The module complies with EN 61131-2, EN 61000-6-4, EN 61000-6-2, and EN 61010-2-201 standards.

Technical Specifications

• Range of Product: Modicon M340 automation platform

• Accessory Type: Backplane expander

• Product Compatibility: BMXXBP0600, BMXXBP0400, BMXXBP0800, BMXXBP1200

• Accessory Destination: Multi-rack configuration

• Electrical Connection: 2 x 9-way female SUB-D connectors

• Local Signalling:

• 1 green LED for operating status (RUN)

• 1 red LED for collision error (COL)

• 4 green LEDs for rack address status

• Current Consumption: 160 mA at 24 V DC, 22 mA at 3.3 V DC

• Module Format: Standard

• IP Degree of Protection: IP20

• Operating Temperature: 0…60 °C (32…140 °F)

• Relative Humidity: 10…95% without condensation

• Directives Compliance: 2014/35/EU Low Voltage, 2014/30/EU EMC

• Product Certifications: CE, UL, CSA, RCM, EAC, Merchant Navy

• Standards Compliance:

• EN 61131-2

• EN/IEC 61010-2-201

• UL 61010-2-201

• CSA C22.2 No 61010-2-201

• IACS E10

• EN/IEC 61000-6-5 interface type 1 & 2

• EN/IEC 61850-3 location G

• Environmental Characteristic: Hazardous location class I division 2

• Protective Treatment: TC

• Country of Origin: France

• Carbon Footprint: 191 kg CO2 eq (total life cycle)

• Packaging: Made with recycled cardboard
