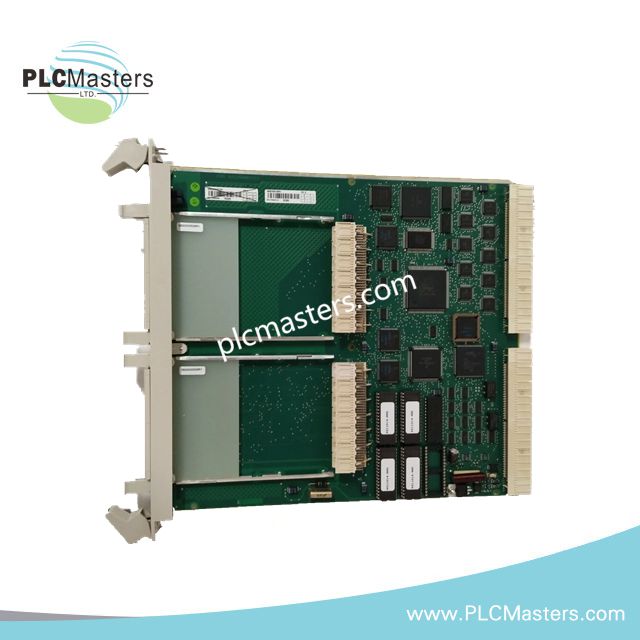

ABB SC560 3BSE008105R1 Submodule Carrier with Local CPU

Product Overview

The SC560 (3BSE008105R1) from ABB is a compact submodule carrier equipped with an onboard local CPU, developed for distributed architectures within the Advant Controller 450RMC and AC 400 control platforms.
It operates as an intelligent communication and expansion node, handling local processing tasks while hosting communication and I/O submodules in demanding industrial control systems.

Designed for high availability environments, the SC560 supports redundant power input, fast cyclic response, and multiple industrial fieldbus protocols, making it well suited for large and mission-critical DCS installations.

Core Functions and Architecture

The SC560 integrates a local processor directly onto the carrier backplane, allowing time-critical logic execution and data pre-processing to be performed close to the field level. This architecture reduces controller load, improves determinism, and enhances overall system resilience.

The carrier accepts a range of ABB communication and function boards, enabling flexible system scaling without redesigning the control cabinet layout.

Technical Specifications

Model / Part Identification
SC560 (3BSE008105R1)

Hardware Type
Submodule Carrier with Local CPU

Compatible Control Systems
ABB Advant Controller 450RMC
ABB AC 400 Series

Processor Performance
Approx. 6 MIPS
Millisecond-class response time

Power Requirements
24 VDC nominal input
Typical current consumption: ~240 mA
Dual power input support for redundancy

Communication Interfaces
Integrated RS-485 interface
Baud rate up to 115.2 kbps

Supported Protocols
Modbus RTU
PROFIBUS-DP
CC-Link

I/O Expansion Capacity
Supports up to 256 I/O points via submodules

Diagnostics and Monitoring
Front-panel LED indicators for status, faults, and communication
System diagnostics accessible through ABB engineering tools

Environmental Conditions
Operating temperature: −20 °C to +60 °C
Protection rating: IP20

Mechanical Data
Width: 30 mm
Height: 300 mm
Depth: 291 mm
Net weight: 0.76 kg

Reliability and Redundancy Features

The SC560 is engineered for continuous operation in harsh industrial environments. Built-in redundancy mechanisms allow seamless operation during power disturbances, while hot-backup capabilities ensure uninterrupted control performance in critical process sections.

Electrical protection circuits safeguard the module against overvoltage, undervoltage, and short-circuit conditions, contributing to long service life and stable system behavior.

Typical Application Areas

Power generation and substation automation
Steel production and heavy industrial manufacturing
Chemical and petrochemical processing plants
Oil and gas production and pipeline systems
Water and wastewater treatment facilities

Frequently Asked Questions

Can the SC560 operate independently from the main controller?
It performs local processing but functions as part of the Advant DCS architecture and communicates continuously with the main controller.

Is the SC560 suitable for redundant system designs?
Yes. It supports redundant power input and is commonly used in high-availability control configurations.

Are refurbished units available?
Both new and professionally refurbished units are commonly available, typically supplied with a 12-month warranty.
