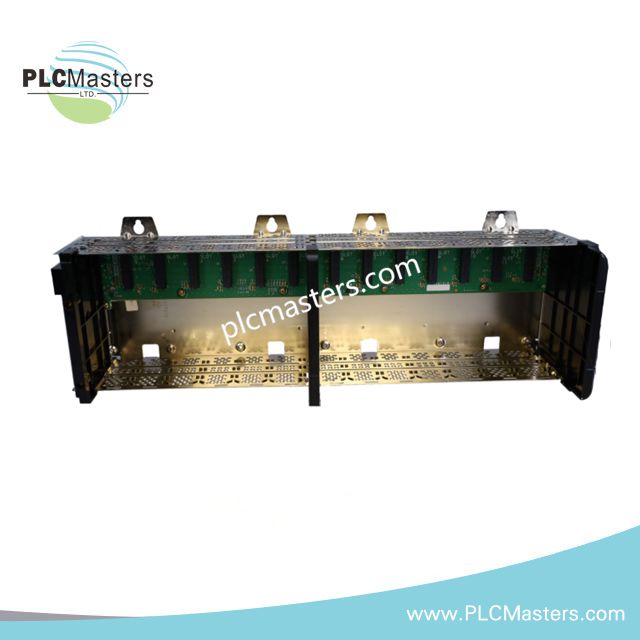

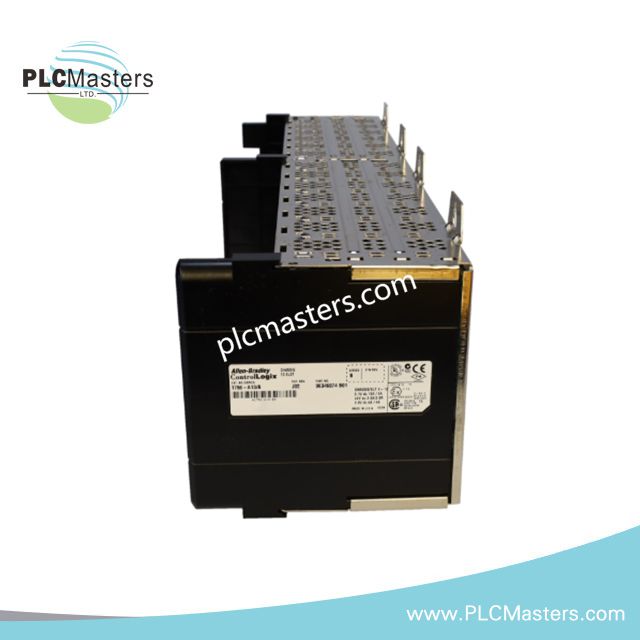

Allen-Bradley 1756-A13 ControlLogix PLC Chassis
$123.00
$320.00
Description
Product Description
The Allen-Bradley 1756-A13 is a modular ControlLogix chassis designed to support large-scale PLC and distributed control applications. This open-style rack provides 13 available slots for ControlLogix controllers, communication modules, I/O modules, and specialty system components within a centralized automation platform.
Built for horizontal sub-panel installation, the chassis uses passive convection cooling and supports flexible system expansion for demanding industrial environments. The 1756-A13 backplane architecture enables high-speed communication between installed modules, making it suitable for process control, manufacturing automation, and integrated motion applications.

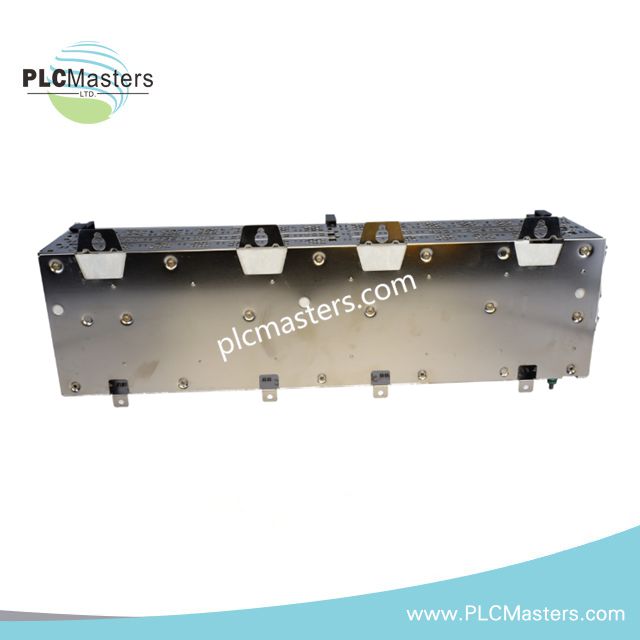

Its durable mechanical structure includes reinforced mounting tabs for stable panel installation in industrial control cabinets.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Product Series | ControlLogix |
| Product Type | PLC Chassis |
| Model Number | 1756-A13 |
| Total Slots | 13 Slots |
| Chassis Orientation | Horizontal |
| Installation Type | Sub-Panel / Panel Mount |
| Enclosure Configuration | Open-Type Chassis |
| Cooling Method | Convection Cooling |
| Top Mounting Tabs | 4 |
| Bottom Mounting Tabs | 4 |
| Total Mounting Tabs | 8 |
| Maximum Operating Temperature | 60°C (140°F) |
| Minimum Operating Temperature | 0°C (32°F) |
| Maximum Ambient Air Temperature | 60°C (140°F) |
| Relative Humidity | 80% Non-Condensing |
| Maximum Altitude Without Derating | 1000 m Above Sea Level |
| North American Temperature Rating | T5 |
| IECEx Temperature Rating | T5 |
| Weight | 3.31 lbs |
System Compatibility
The 1756-A13 chassis supports integration with the following ControlLogix platform components:
-
ControlLogix processors
-
1756 digital I/O modules
-
Analog input and output modules
-
Communication adapters
-
Motion control modules
-
Redundancy modules
-
Specialty automation modules
Its 13-slot configuration provides additional expansion capacity compared to smaller chassis models, making it suitable for complex control architectures requiring multiple network or process interfaces.
Installation Characteristics
-
Horizontal mounting orientation only
-
Open enclosure design for cabinet-based installations
-
Passive airflow cooling without internal fans
-
Compatible with standard industrial panel mounting hardware
-
Engineered for modular ControlLogix system expansion
Common Applications
The 1756-A13 PLC chassis is widely used in:
-
Process automation systems
-
Manufacturing production lines
-
Water treatment facilities
-
Oil and gas operations
-
Packaging and material handling systems
-
Plant-wide distributed I/O networks
-
High-density industrial control panels
FAQ
How many modules can be installed in the 1756-A13 chassis?
The chassis provides 13 available slots for compatible ControlLogix modules.
Is vertical mounting supported?
No. The 1756-A13 is designed exclusively for horizontal mounting orientation.
Does the chassis include a power supply module?
No. ControlLogix power supplies are sold separately and must be installed according to system requirements.
What cooling method does this chassis use?
The chassis uses natural convection cooling and does not require integrated cooling fans.
