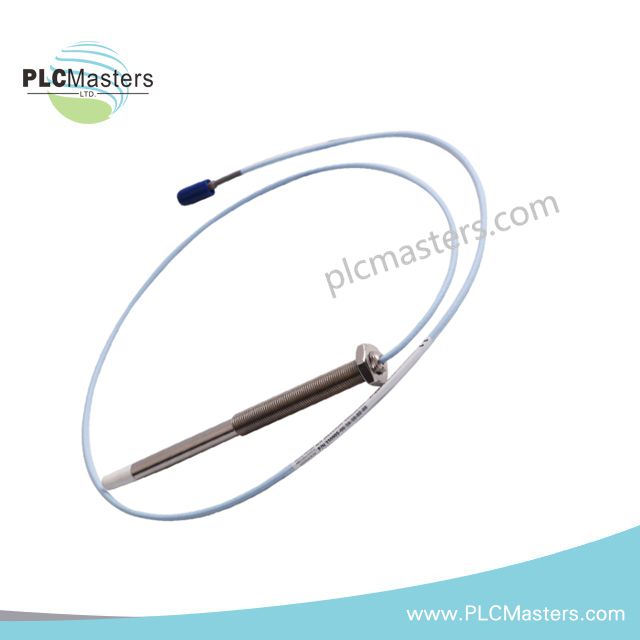

Bently Nevada 330905-07-17-05-02-05 Proximity Probe
$226.00
$520.00
Description
Overview
The Bently Nevada 330905-07-17-05-02-05 is a high-precision 3300 NSv (Narrow Side View) proximity probe engineered for compact, high-speed rotating machinery. Designed for applications with tight installation constraints, this probe delivers accurate shaft vibration, axial position, and clearance measurements in compressors, turbines, gearboxes, and refrigeration units. It is fully compatible with NSv extension cables and 3300 XL NSv Proximitor® sensors for complete vibration monitoring systems.
Key Specifications
| Specification | Details |
|---|---|
| Probe Type | 3300 NSv Proximity Probe |
| Probe Tip Diameter | 5 mm |
| Thread Size | M10 × 1 metric |
| Cable Length | 7 m armored coaxial |
| Operating Voltage | 24 V DC (via Proximitor Sensor) |
| Measurement Range | Optimized for shafts < 51 mm diameter, flat targets < 15 mm |
| System Components | Probe, extension cable, 3300 XL NSv Proximitor Sensor |
| Certifications | API 670 Machinery Protection Standard |
| Weight | 0.15 kg |
Technical Features
-
Compact Footprint: Narrow side view design enables installation in counterbores or restricted spaces.
-
High Accuracy: Non-contact measurement technology with micrometer-level sensitivity.
-
Robust Construction: Armored coaxial cable ensures durability in harsh industrial conditions.
-
Versatile Compatibility: Seamlessly integrates with NSv extension cables and Proximitor® sensors.
-
Reliable Operation: Engineered for high-speed rotating equipment monitoring, meeting API 670 standards.
Typical Applications
-
Centrifugal Compressors: Radial vibration and axial position monitoring.
-
Gearboxes: Shaft movement detection in compact housings.
-
Refrigeration Compressors: Precise vibration measurement in constrained installations.
-
Process Gas Compressors: Accurate shaft position measurement under high-speed operation.
FAQ
Q: Can this probe operate with standard 3300 XL Proximitor Sensors?
A: Yes, it is fully compatible with all 3300 XL NSv Proximitor Sensor models and extension cables.
Q: What shaft sizes are ideal for this probe?
A: It is optimized for shafts smaller than 51 mm in diameter and flat targets under 15 mm.
Q: Is the cable suitable for harsh environments?
A: The 7-meter armored coaxial cable provides excellent durability and mechanical protection in industrial settings.
Q: Are there similar models for larger shafts?
A: Yes, the NSv series includes standard probes with larger tip diameters and extended measurement ranges for bigger machinery.
