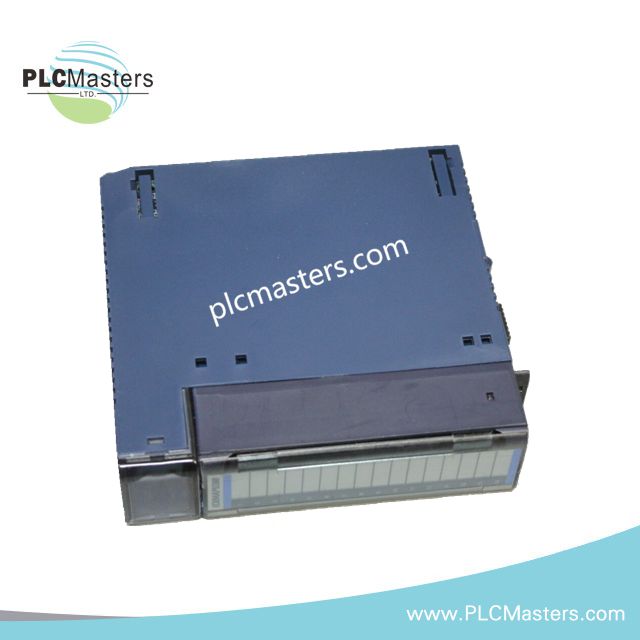

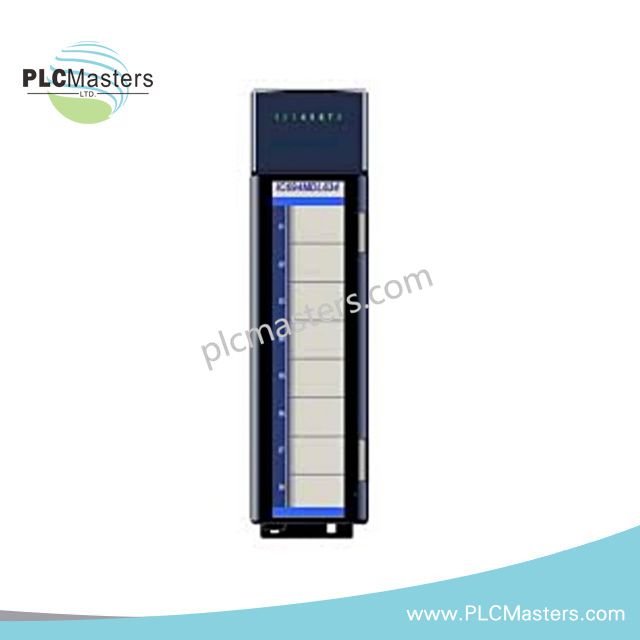

GE Fanuc RX3i IC694MDL758 32-Point DC Output Module
$175.00
$565.00
Description
Overview
The IC694MDL758 is a 32-point DC voltage output module designed for GE Fanuc RX3i PacSystems PLCs. It delivers high-reliability sourcing outputs with independent electronic short-circuit protection (ESCP) for each group. Outputs are divided into two isolated groups of 16 points, each with its own common and fault monitoring. This ensures safe operation under short circuit or field power loss conditions.
Key Features
-
32 discrete output points in two isolated 16-point groups
-
Positive logic (sourcing) outputs that provide current to loads
-
Independent electronic short-circuit protection (ESCP) per group
-
Fault reporting for short circuits and loss of field power to RX3i controller
-
Fast switching: max on/off response time 0.5 ms
-
LED indicators for each output point
Technical Specifications
| Attribute | Specification |
|---|---|
| Output Type | Positive logic (sourcing) |
| Points | 32 (two groups of 16) |
| Output Voltage | +12 to +24 VDC (+20% / -15%) |
| Max Current per Point | 0.5 A |
| Max Group Current | 8 A per group without ESCP trip |
| Output Characteristics | On-state voltage drop: 0.3 V; Off-state leakage ≤ 0.1 mA |
| Response Time | On/off ≤ 0.5 ms |
| Short Circuit Protection | ESCP per group |
| Isolation | Group-to-group: 50 VAC continuous, 500 VAC 1 min; Field-to-backplane: 250 VAC continuous, 1500 VAC 1 min |
| Power Consumption | Backplane 5 V max 250 mA; External 24 VDC max 33 mA/group; External 12 VDC max 20 mA/group |
| Operating Environment | Ambient air ≤ 60°C; Pollution Degree 2 |
| Dimensions | 34 × 145 × 140 mm |
| Weight | 1.36 kg |
| LED Indicators | One per output point (32 total) |
Applications
Ideal for discrete control, process automation, and mission-critical industrial systems requiring fast response and robust short-circuit protection.
FAQ
Q: Does this module require an external power supply?
A: Yes, the IC694MDL758 requires a user-supplied isolated AC/DC supply for operation.
Q: How does the module report faults?
A: Short circuits or loss of field power are reported directly to the RX3i controller for real-time monitoring and protection.
Q: How does it compare to similar modules?
A: Compared with IC694MDL740 modules, the IC694MDL758 provides higher output points (32 vs 16), independent ESCP for each group, and faster switching times.
