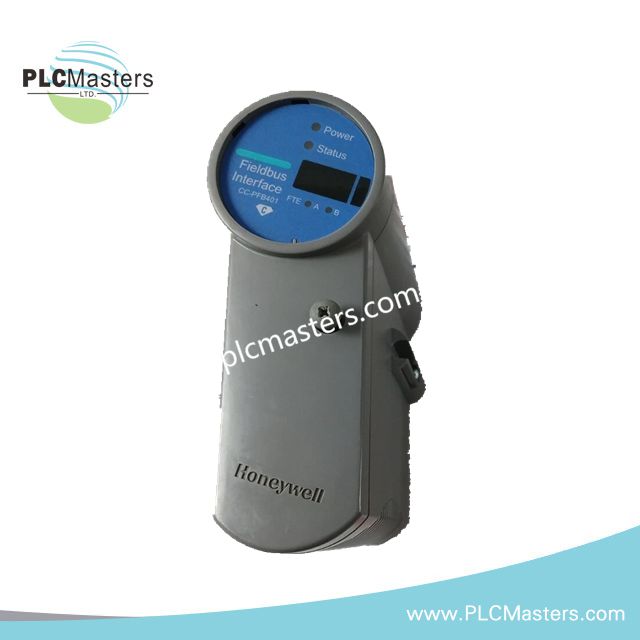

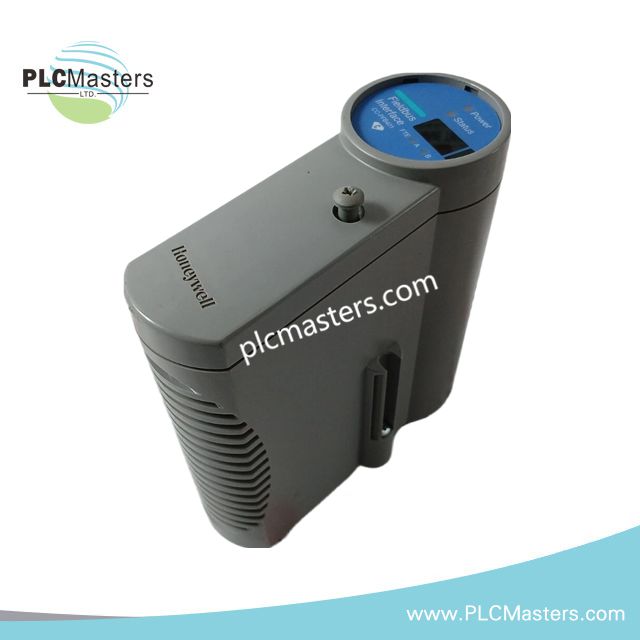

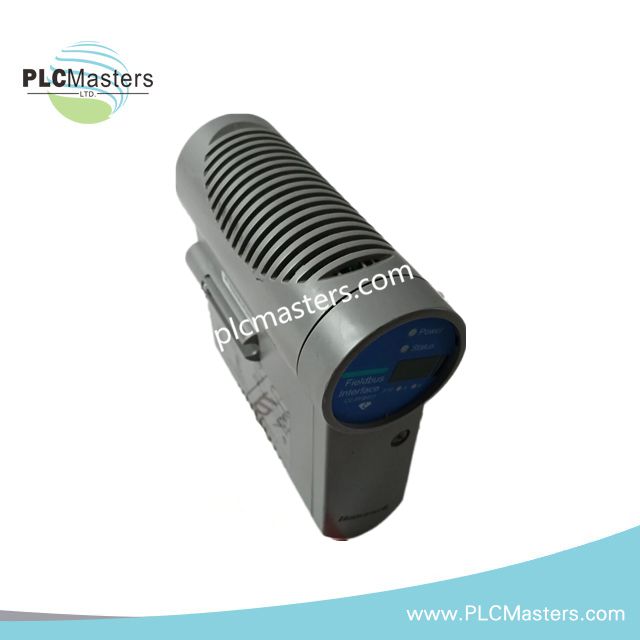

Honeywell CC-PFB401 51405044-175 Profibus Fieldbus Interface Module

Product Description

The CC-PFB401 (51405044-175) is a Profibus-DP communication interface engineered for Honeywell distributed control platforms, enabling direct integration of Profibus-DP field networks into Honeywell control architectures. The module functions as a high-performance fieldbus gateway between Honeywell controllers and external DP-slave devices, ensuring deterministic and cyclic data exchange in time-critical industrial processes.

Designed for long-term operation in continuous-duty environments, this module supports high data throughput, advanced diagnostics, and seamless system integration. Depending on system configuration, the CC-PFB401 (51405044-175) is deployed within Honeywell C300 / Series 8 or legacy TPS/TDC3000 installations to extend field connectivity without compromising control reliability.

Key Functional Capabilities

The CC-PFB401 (51405044-175) provides native Profibus-DP master functionality, allowing Honeywell control systems to communicate with a wide range of third-party automation devices. Its architecture supports deterministic bus behavior required for real-time control, while built-in diagnostics assist maintenance and commissioning activities.

Primary functional characteristics include support for cyclic DP communication, automatic device status monitoring, and electrical isolation between control electronics and the fieldbus network. In supported chassis, the module can be replaced without powering down the system, minimizing downtime during maintenance.

Technical Specifications

General Characteristics

• Module Type: Profibus Fieldbus Interface Module

• Model: CC-PFB401

• Part Number: 51405044-175

• Supported Systems: Honeywell C300, Series 8 I/O, TPS/TDC3000 (system-dependent)

• Installation: Honeywell standard backplane and chassis

Communication Parameters

• Fieldbus Protocol: Profibus-DP (DP-V0 / DP-V1 support depending on firmware)

• Master Functionality: DP-Master Class 1

• Maximum Baud Rate: Up to 12 Mbit/s

• Communication Mode: Cyclic process data exchange

• Supported Devices: Profibus-DP slave devices such as remote I/O, variable-speed drives, smart instruments, and valve positioners

• Diagnostic Functions: Network status, slave health, communication fault detection

Electrical Characteristics

• Power Source: Supplied via system backplane

• Typical Power Dissipation: Approximately 6 W

• Electrical Isolation: Galvanic isolation between Profibus network and system bus

Environmental Ratings

• Operating Temperature Range: 0 °C to +60 °C

• Storage Temperature Range: –40 °C to +85 °C

• Relative Humidity: 5% to 95%, non-condensing

• Mechanical Resistance: Designed to meet Honeywell industrial vibration and shock standards

Physical Attributes

• Form Factor: Honeywell Series 8 / C300 module format

• Mounting Method: Slot-based installation in Honeywell chassis

• Status Indicators: LED indicators for power, module health, and Profibus communication status

Typical Application Scenarios

The CC-PFB401 (51405044-175) is commonly used in control systems where Profibus-DP devices must be integrated into Honeywell DCS environments. Typical applications include connecting remote I/O stations, interfacing with variable-frequency drives, integrating smart transmitters, and upgrading legacy TPS/TDC3000 systems with modern fieldbus communication.

FAQ

Q: Can this module operate as a Profibus-DP master?
A: Yes. The CC-PFB401 (51405044-175) operates as a DP-Master, enabling direct control and monitoring of Profibus-DP slave devices.

Q: Is the module compatible with both C300 and TDC3000 systems?
A: Compatibility depends on system architecture and firmware. The module is used in C300 / Series 8 platforms and certain TPS/TDC3000 configurations.

Q: Does the module support hot replacement?
A: In supported Honeywell chassis, the module is designed to be hot-swappable, reducing system downtime during maintenance.
