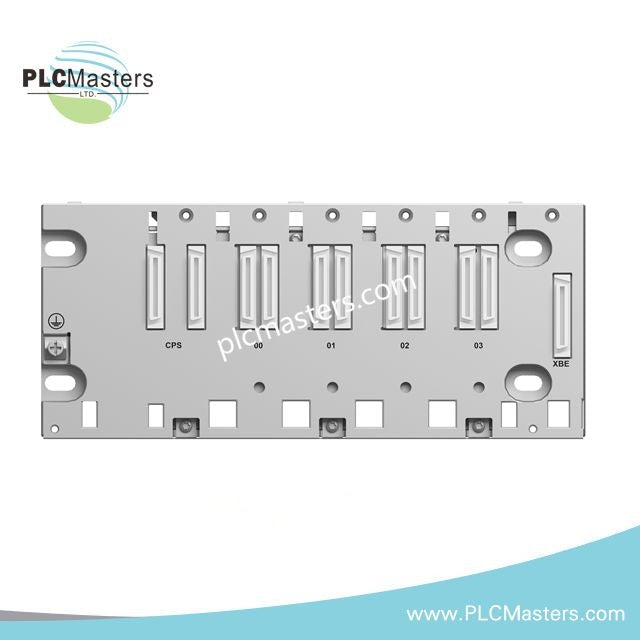

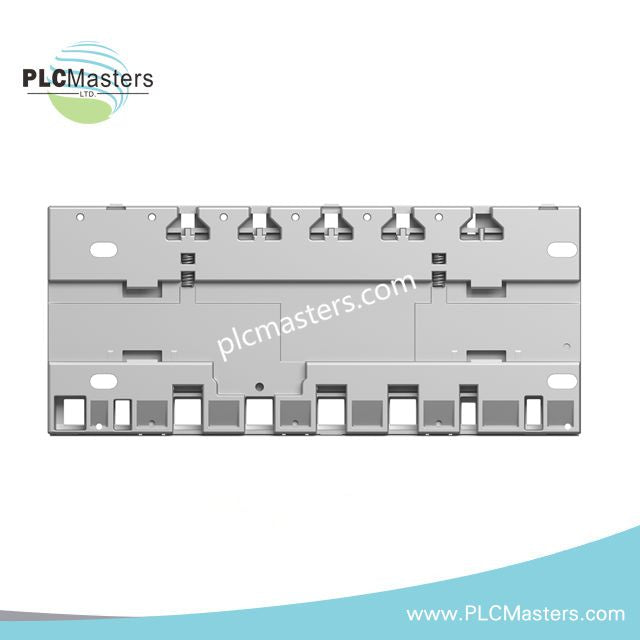

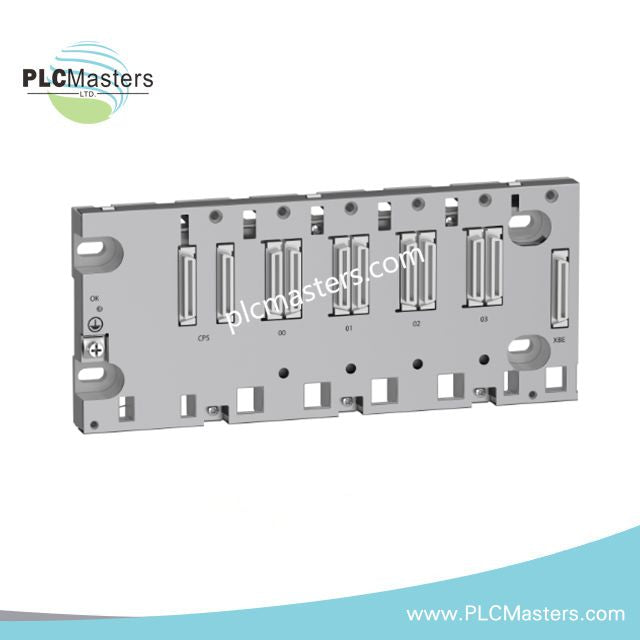

Schneider Electric BMEXBP0400 Modicon X80 4-Slot Ethernet Rack
$215.00
$326.00
Description
Product Description
The BMEXBP0400 from Schneider Electric is a 4-slot rack with an integrated Ethernet backplane, specifically designed for the Modicon X80 range within the M580 PAC system. It provides the structural and electrical foundation for processors, power supplies, and I/O modules while ensuring reliable communication across the rack.
This rack supports flexible mounting options including DIN rail, panel, or plate installation, making it adaptable to diverse industrial environments. Its robust construction and high MTBF ensure stable operation under typical factory conditions, while compliance with international standards guarantees safety and electromagnetic compatibility.
Technical Specifications
| Attribute | Details |
|---|---|
| Model | BMEXBP0400 |
| Product Type | 4-Slot Ethernet Backplane Rack |
| Product Range | Modicon X80 (M580 PAC) |
| Slot Count | 4 bus X + Ethernet |
| Compatible Modules | BMX processors, BME processors, BMXCPS power supplies, I/O modules, specific application modules |
| Electrical Connection | 1 × XBE connector (expansion module) |
| Mounting Options | 4 × M6 screws (plate), 4 × Ø 4.32–6.35 mm screws (panel), clips on 35 mm DIN rail |
| Current Consumption | 49 mA @ 3.3 V DC, 118 mA @ 24 V DC |
| Power Consumption | 162 mW @ 3.3 V DC, 2.8 W @ 24 V DC |
| MTBF | 2,000,000 hours |
| Weight | 0.705 kg |
| Protection Rating | IP20 |
| Operating Temperature | 0…60 °C |
| Storage Temperature | -40…85 °C |
| Relative Humidity | 5…95% non-condensing |
| Compliance | WEEE 2012/19/EU, EMC 2014/30/EU, Low Voltage 2014/35/EU |
| Standards | EN/IEC industrial automation standards |
| Intended Environment | Indoor, industrial control applications |
Key Features
-
Compact 4-slot design ideal for small to medium automation systems.
-
Ethernet backplane ensures high-speed communication between modules.
-
Multiple mounting options allow panel, plate, or DIN rail integration.
-
High reliability with an MTBF of 2 million hours.
-
Wide environmental tolerance including temperature and humidity ranges.
-
Compliant with global safety, EMC, and low-voltage standards.
Application Scenarios
The BMEXBP0400 rack is suited for:
-
Modicon M580 PAC-based control systems
-
Industrial process control and monitoring applications
-
Automation setups requiring flexible module integration
-
Retrofit or expansion of existing Modicon X80 installations
Frequently Asked Questions (FAQ)
Q: What modules are compatible with the BMEXBP0400?
A: It supports BMX and BME processors, BMXCPS power supplies, I/O modules, and specific application modules within the Modicon X80 range.
Q: What mounting methods are available?
A: The rack can be mounted on a DIN rail, panel, or plate using M6 or Ø 4.32–6.35 mm screws.
Q: How reliable is the rack in continuous operation?
A: The BMEXBP0400 has a rated MTBF of 2 million hours, ensuring stable long-term performance.
